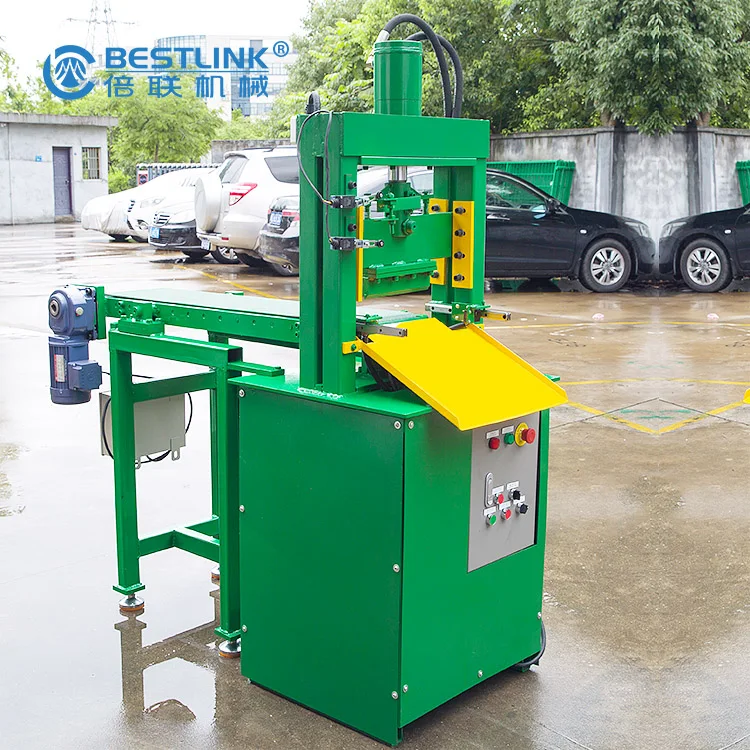

1.Portable Mosaic Chopping Machine
2. For Chopping sandstone, slate, granite and marble
3 Easy to use.
4.Competitive factory price.
| Model | MS-3AH | MS-5AH | MS-12H | MS-20H |
| Splitting force (T) | 3 | 5 | 12 | 20 |
| Max. Splitting Width (mm) | 120 | 120 | 240 | 240 |
| Max.Splitting Height (mm) | 50 | 100 | 100 | 150 |
| Power Supply | Hydraulic,1kw | Hydraulic,1kw | Hydraulic,3kw | Hydraulic,5kw |
| Overall Size (cm) | 140*90*60 | 90*60*140 | 90*50*130 | 110*50*140 |
| Weight (kg) | 235 | 235 | 350 | 450 |
| Aplication | split rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal control | Chop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control. | Chop various sizes flat face stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control. |
