MS-02 Mini Size Manual Mosaic Cutting Chopper Machine
BESTLINK
The mosaic chopping machines are the result of a very long experience, we acquired in the construction of this kind of tools.
The weight of each part and the relation occurring between them are fully optimized with the result that is possible to obtain a precise and effective cut just with a minimum effort.
Both of the machines are realized for cutting various sizes of stones: Tesserae, cubes& all the shapes desired.
The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron.
The diameter of the fly-wheel of teseus model measures 40cm; The diameter of the fly-wheel of its smaller twin machine MS-02/02E corresponds to 30cm.
Both the chopping machines are equipped with two blades in hardened steel: The lower one is secured to the structure and doesn't move; The upper one is driven by the fly-wheel and falls in a perpendicular on the lower. Our chopping machines are produced 100% in Italy in all of their components and special care is dedicated to the choice of very high quality materials. This construction process warranties an absolute strength and resistance giving to the teseus and to the MS-02/02E an extremely long life, almost everlasting! ! Both models are provided with a replacement spare blades.
APPLICATION:
For cutting granite, marble, sandstone, slate and strip tile etc.

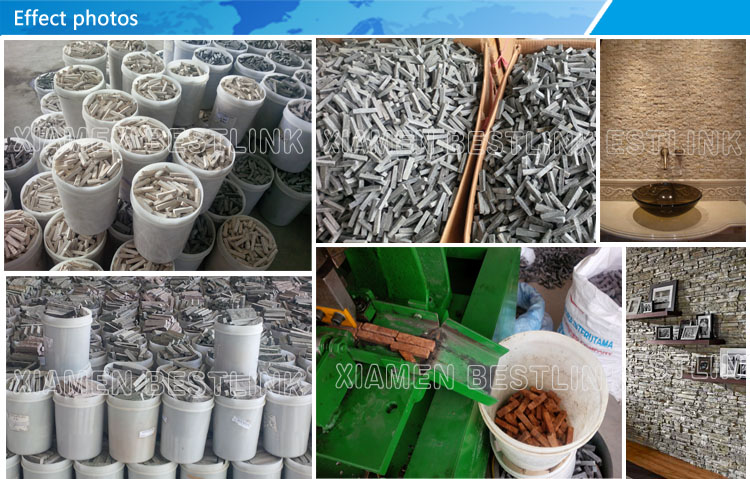

Work fast, High precision cutting various sizes of stones: Mosaic, tesserae, cubes & all the shapes desired.

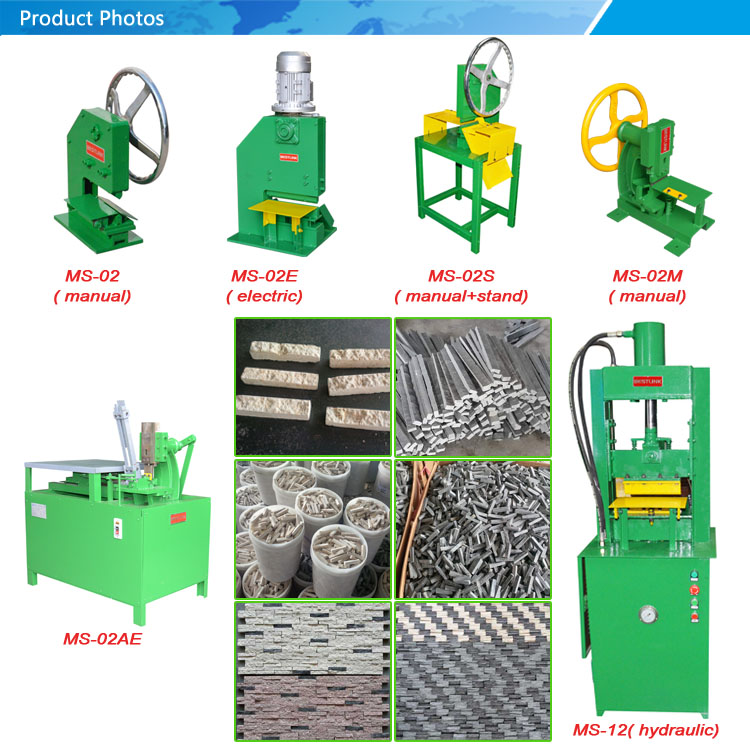

| Model No | MS-02 (manual) | MS-02S (manual+stand) | MS-02E (electric) | MS-03 (manual) | MS-12(hydraulic) | MS-40(hydraulic) | MS-2A |
| Splitting Force | 2 tons | 2 tons | 2 tons | 2tons | 12 tons | 40 tons | 2 tons |
| Max Cutting Width | 240 mm | 240 mm | 240 mm | 120 mm | 240 mm | 300mm | 20mm |
| Max Cutting height | 65 mm | 65 mm | 65 mm | 30 mm | 100 mm(40mm for granite) | 130mm (80mm for granite) | 10-20mm |
| Power Supply | / | / | / | / | 3.0 kw | 5.5kw | 0.37kw |
| Oil Tank | / | / | / | / | 30 L | 60L | / |
| Overall Size | 500*400*700 mm | 1500*700*500mm | 900*400*400mm | 630*430*600CM | 500*600*1600 mm | 700*800*1700mm | 1100*650*1200mm |
| Net Weight | 70 kg | 80kg | 65 kg | 70 kg | 210 kg | 350kg | 200kg |
CERTIFICATE:
Our hydraulic wall clading mosaic stone cutting machine has CE certificate.
