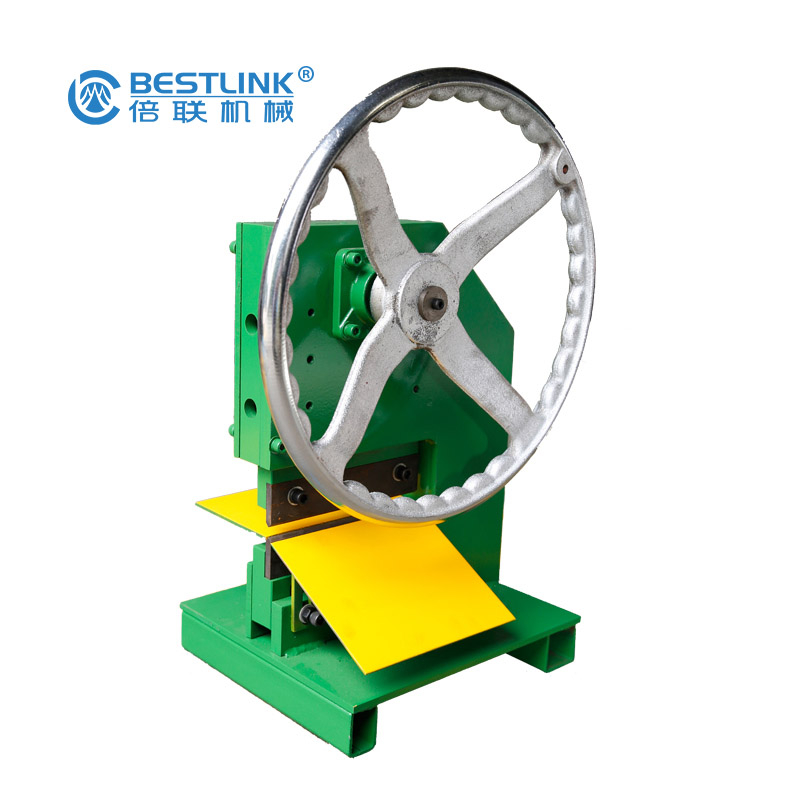

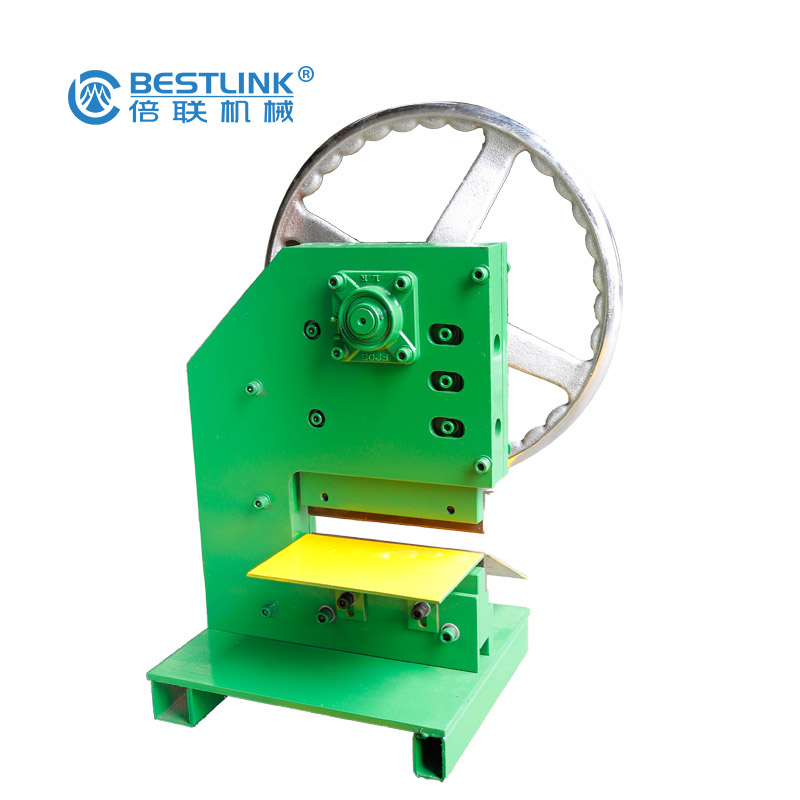

MS-02 Manual Stone Splitting Machine for Making Mosaic Stones
BESTLINK
Products Feature
The mosaic cutting machines are realized for cutting various sizes of stones: tesserae, cubes & all the shapes desired.
It is perfect for cutting marble, stone and strip tile and with high precision into mosaic and micro mosaic.
Structure for the Kerb Stone Cutter
The structure of both the Cutter Machine is realized in steel, while fly-wheel and slides are produced in cast iron. which are equipped with two blades in hardened steel: the lower part is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
And the Stand table is more convenient for operation.
The machine will come with one replace blade.
Advantage:
High efficience and stable performance.
Light weight,
Very easy operation--Manual handle without electric or oil,
Work fast

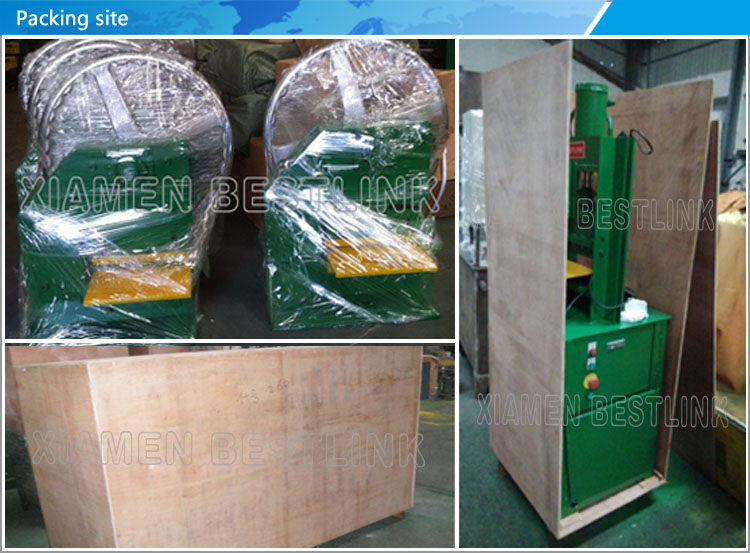

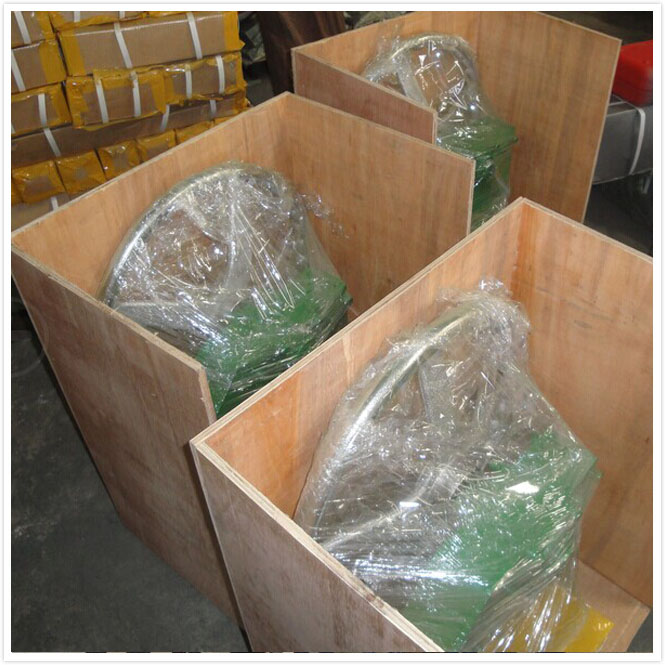

Package:
This Kerb Stone Cutter will be packinged into the exported standard plywood case. And it is ok to package it according to the clients' requirement.

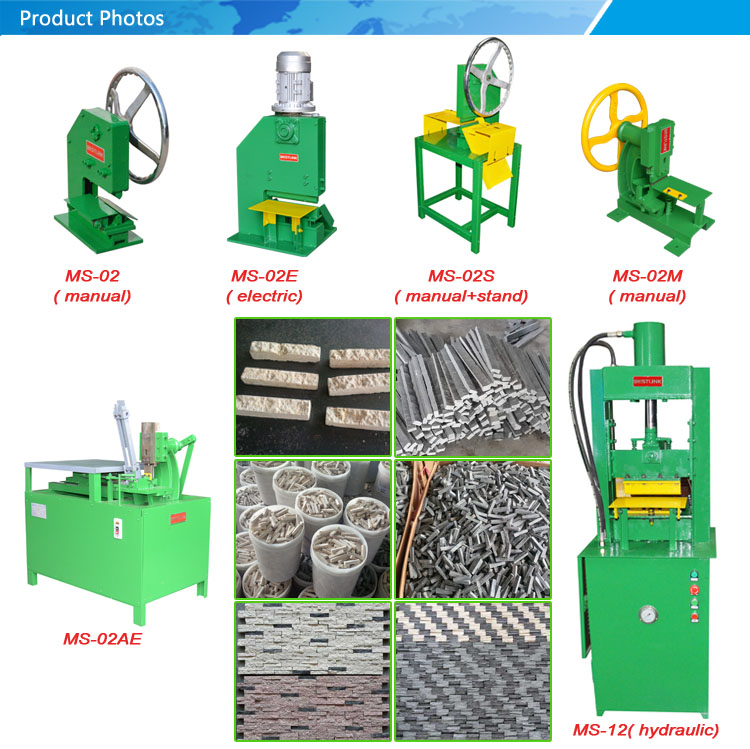

More models of Kerb Stone Cutter for your reference:
Except the portable manual mosaic chopping machine, we also have other models, with stand, electric ones.
| Model No | MS-02 | MS-02S | MS-02E | MS-12 |
| (manual) | (manual+stand) | (electric) | (electric) | |
| Splitting Force | 2 tons | 2 tons | 2 tons | 12 tons |
| Max Cutting Width | 240 mm | 240 mm | 240 mm | 240 mm |
| Max Cutting height | 65 mm | 65 mm | 65 mm | 50 mm |
| Power Supply | 0 | 0 | 0 | 3.0 kw |
| Oil Tank | 0 | 0 | 0 | 30 L |
| Overal Size | 500*400*700 mm | 750*400*1400 mm | 750*400*800 mm | 500*600*1600 mm |
| Net Weight | 70 kg | 140kg | 100kg | 210 kgs |
