Why choose Us?
As a leading factory for waste slab and block processing, Bestlink has supplied the professional stone machines to many countries, like USA, Norway, Egypt, Brazil, India, Russia and Mexico, etc.
From the feedback from our clients all of the world, the quality of the machines from Bestlink is getting better and better, and more and more clients are gonna to have the stamping machine and cutting machines.
And our stone machine has CE certificate.
Product Features:

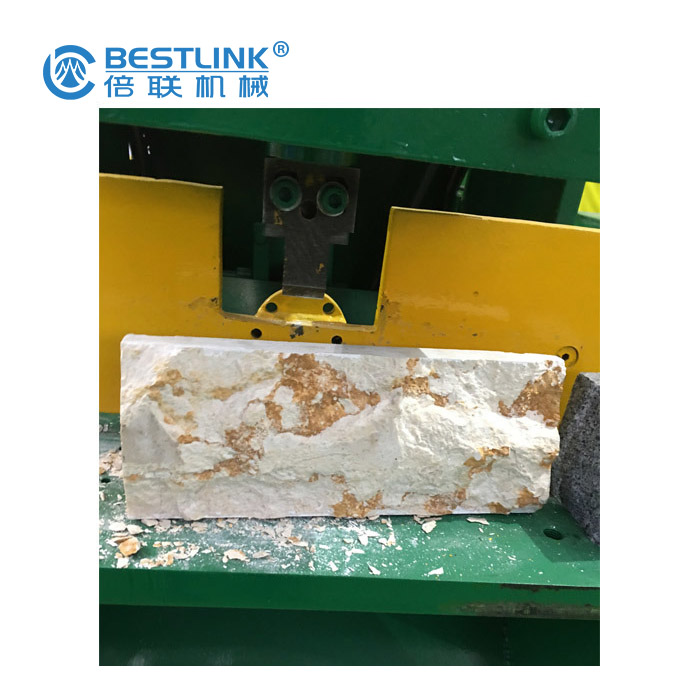

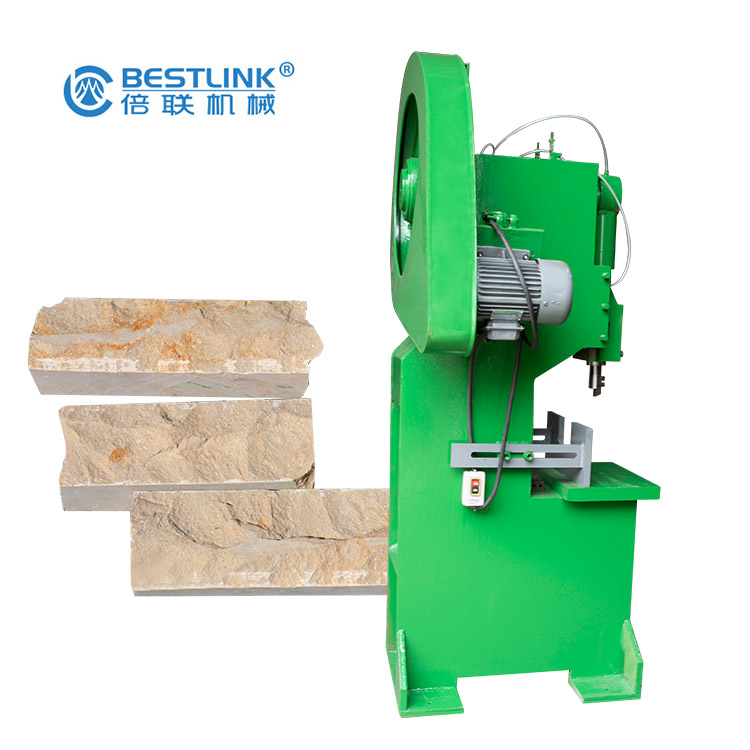

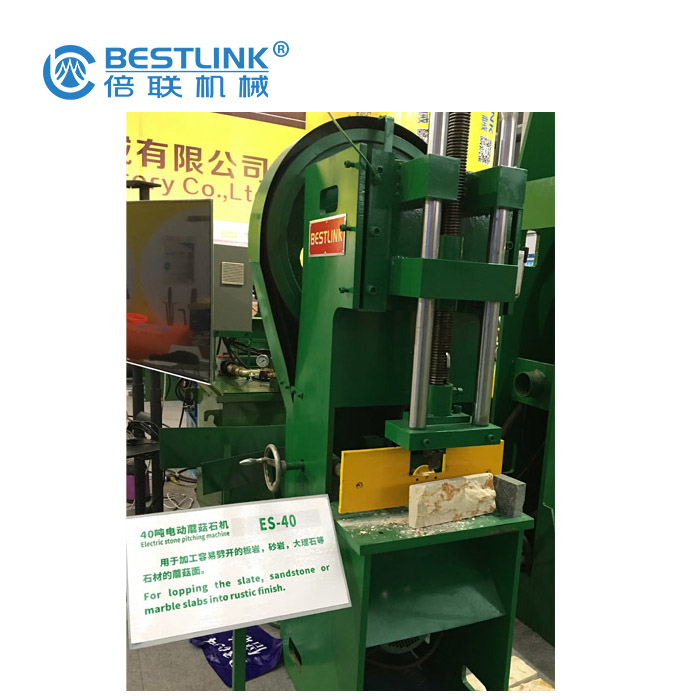

This mushroom stone cutting machine helps to pare the 4 edges of slate and sandstone into mushroom face, for slate, sandstone, marble only.
To get a perfect performance of the machine working, Bestlink uses the following spare parts:
1). Electrical control cabinet: French Schneider
2). The hydraulic system: German Bosch Rexroth
3). Electrical motor: German Siemens
Specification:
| Model | ES-16 | ES-40 |
| Power of motor | 2 kw | 3 kw |
| Number of shots | 125 shot/min | 125 shot/min |
| Splittine force | 16 tons | 40 tons |
| Minimum stone height | 50 mm | 65 mm |
| Maximum stone height | 300 mm | 400 mm |
| Minimum stone thickness | 15 mm | 20 mm |
| Maximum stone thickness | 80 mm | 95mm |
| Dimensions(L*W*H) | 1050*900*2180 mm | 1250*1100*2380 mm |
| Weight | 800 kg | 1400 kg |
Package detailes:
This mushroom/rough face stone chopping machine can be packaged into plywood case:
