Bestlink Right angle （section） machine

Share to:

Bestlink Right angle （section） machine
The machine is a monolithic structure with compact structure and convenient installation and transportation.
The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.
The working mode of the machine adopts the continuous cutting mode of the pipeline , which is mainly usedfor cutting the plane of irregular elliptical stones such as goose warm stone.

Availability:

Quantity:



Inquire Add to Basket

Model:
30HP 60HP Bestlink Thin Brick Veneer Saw Cutting Machine
Brand:
BESTLINK

Product Description

2021 Bestlink Right angle （section） machine

The machine is a monolithic structure with compact structure and convenient installation and transportation.

The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.

Bestlink Right angle （section） machine

The working mode of the machine adopts the continuous cutting mode of the pipeline , which is mainly usedfor cutting the plane of irregular elliptical stones such as goose warm stone.

Bestlink Right angle （section） machine

cutting machine 3

Technical Parameter	60HP	30HP
Dimensions (L×W×H)	3700mm×1600mm×1730mm	3100mm×1600mm×1730mm
Machine Weight	2720kg	2040kg
Main Motor Power	45kw	22kw
Electricity	3 Phase, 240/460V	3 Phase, 240/460V
Amperage	172/86A	86/43A
Water Consumption	3.5m⊃3;/h	3m⊃3;/h
Blade Size	1000mm-1200mm	750mm
Blade Speed Standard(Adjustable)	780rpm	900rpm
Max. Cutting Depth	300mm	250mm
Conveyor Belt Speed(Adjustable)	600mm/min-2450mm/min	600mm/min-2450mm/min

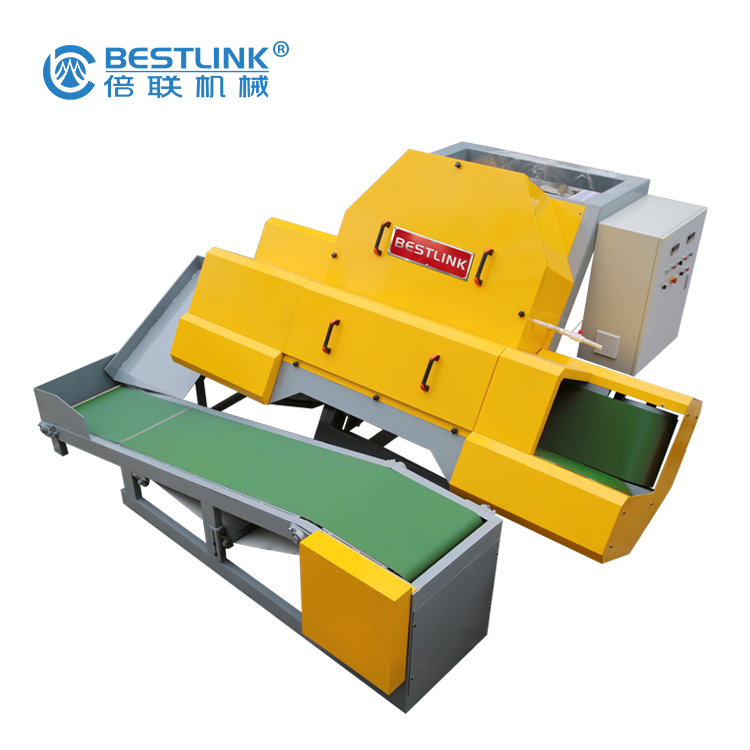

cutting machine 1

cutting machine 2

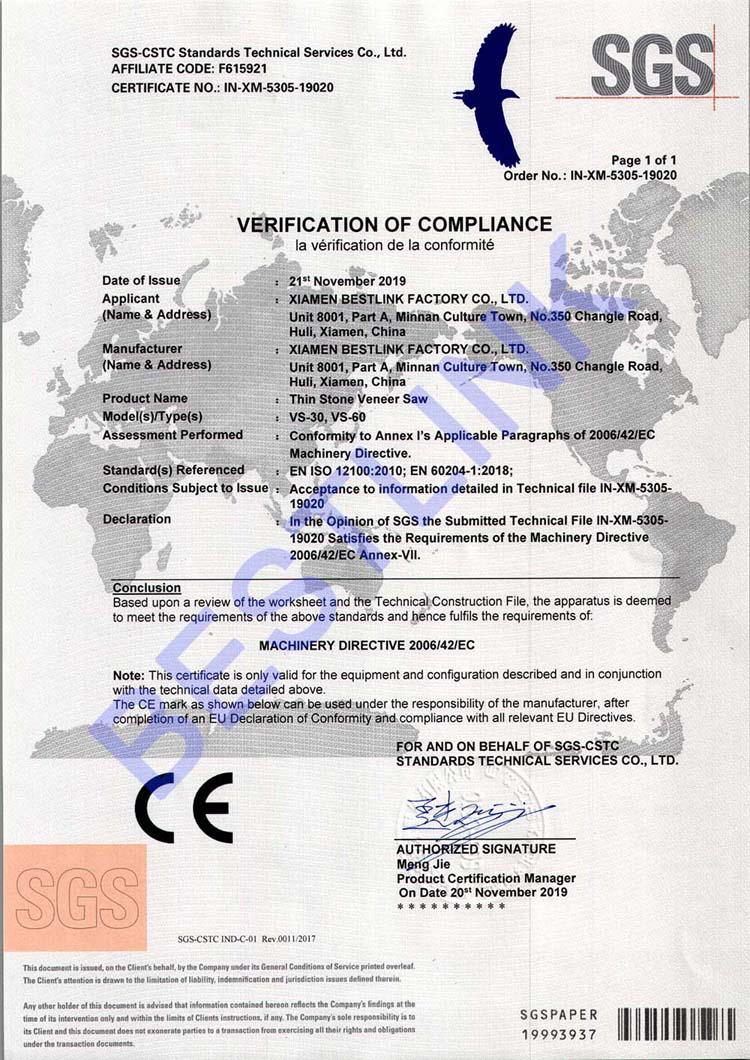

CE For mighty stone saw 2019
