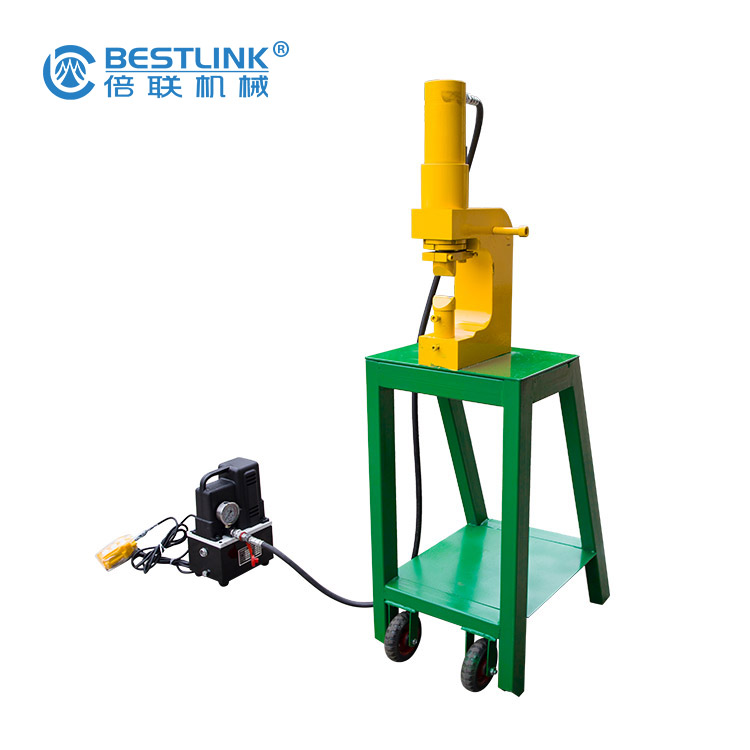

The Mighty C (MC-15) is a portable hydraulic thin veneer splitter designed to split thin veneer

and thin veneer corners,powered by compressed air or small electric hydraulic pump.There

are 6 basic parts to the Mighty C: Sleeve, Jam Nut, Bit Holder, Bit, Base and C Frame.



Technical Parameter:

Splitting force:15T

Travelling stroke(max):100mm

Overall size:600*500*1200mm

Power request:

A.By air compressor

Work pressure:0.6-0.7Mpa

Air Consumption:250-350L/min.

B.By electric power pump

2phases,220V/50Hz,0.6KW

oil tank: 3L

working pressure: 20Mpa

Oil flux: 0.6L/min.

Rotation speed: 1600RPM
