MC-15 Mighty C Air Thin Veneer Stone Splitter
BESTLINK

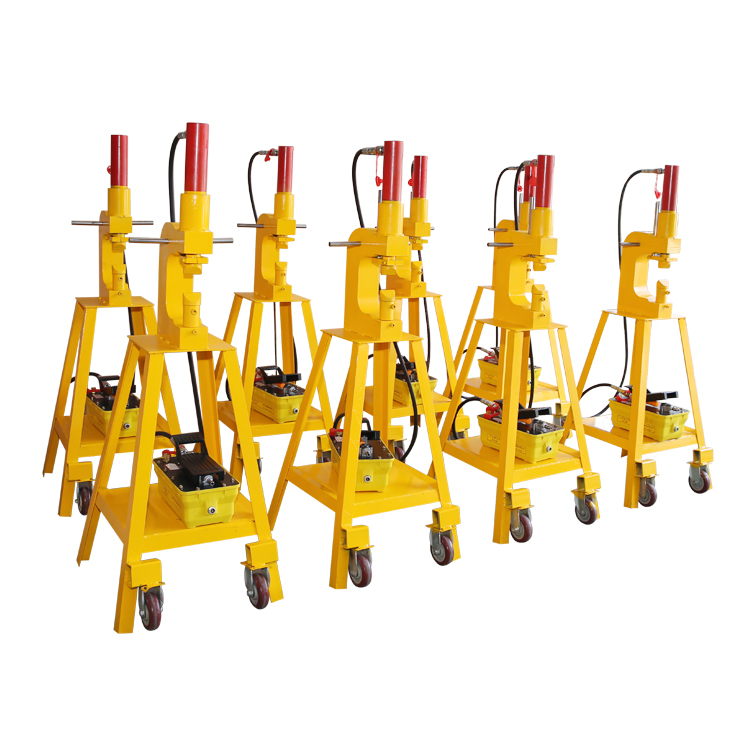

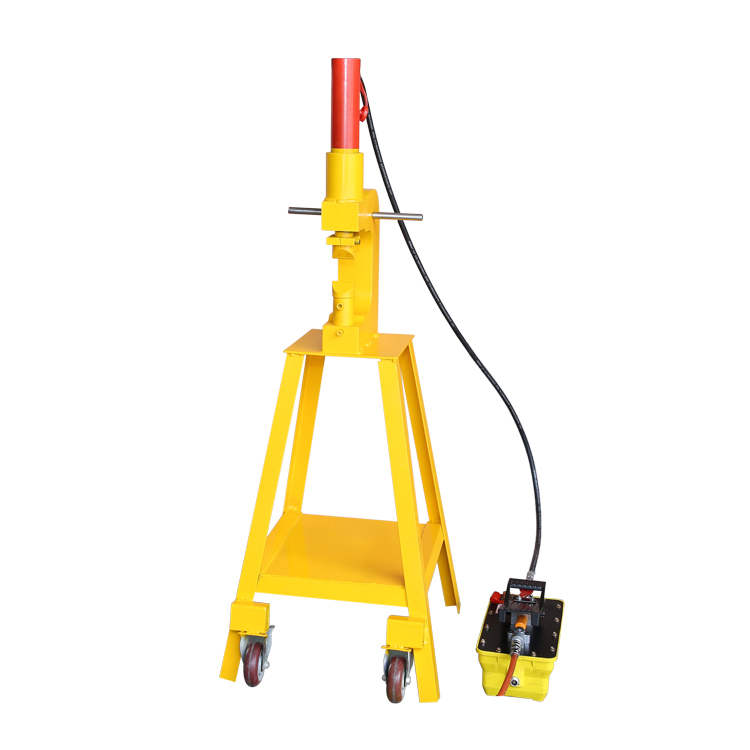

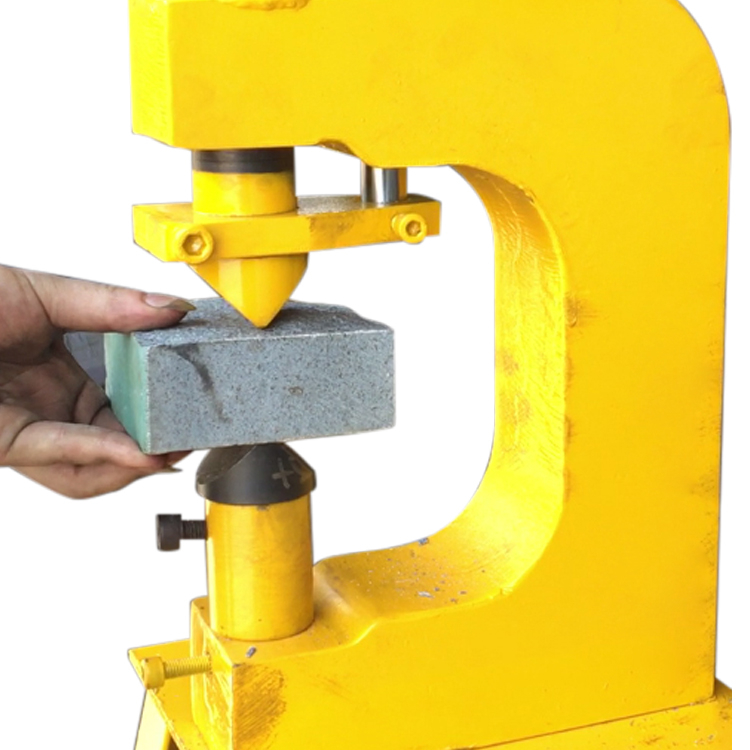

The Mighty C (MC-15) is a portable hydraulic thin veneer splitter designed to split thin veneer
and thin veneer corners,powered by compressed air or small electric hydraulic pump.There
are 6 basic parts to the Mighty C: Sleeve, Jam Nut, Bit Holder, Bit, Base and C Frame.
Technical Parameter:
Splitting force:15T
Travelling stroke(max):100mm
Overall size:600*500*1200mm
Power request:
A.By air compressor
Work pressure:0.6-0.7Mpa
Air Consumption:250-350L/min.
B.By electric power pump
2phases,220V/50Hz,0.6KW
oil tank: 3L
working pressure: 20Mpa
Oil flux: 0.6L/min.
Rotation speed: 1600RPM
Advantage:
●Increased Productivity
●Easy to Maintain
●Environmentally Friendly
●Eliminates Need for
Costly Saw Blades
●No Dust From Saw Cutting
●No Water Waste
●No Saw Blade Waste
●Portable - Indoor or Outdoor Use
The Mighty C (MC-15) is a portable hydraulic thin veneer splitter designed to split thin veneer
and thin veneer corners,powered by compressed air or small electric hydraulic pump.There
are 6 basic parts to the Mighty C: Sleeve, Jam Nut, Bit Holder, Bit, Base and C Frame.
Technical Parameter:
Splitting force:15T
Travelling stroke(max):100mm
Overall size:600*500*1200mm
Power request:
A.By air compressor
Work pressure:0.6-0.7Mpa
Air Consumption:250-350L/min.
B.By electric power pump
2phases,220V/50Hz,0.6KW
oil tank: 3L
working pressure: 20Mpa
Oil flux: 0.6L/min.
Rotation speed: 1600RPM
Advantage:
●Increased Productivity
●Easy to Maintain
●Environmentally Friendly
●Eliminates Need for
Costly Saw Blades
●No Dust From Saw Cutting
●No Water Waste
●No Saw Blade Waste
●Portable - Indoor or Outdoor Use
