Bestlink Factory Stone Guillotine Machine for Making Wall Stones

Views: 0     Author: Site Editor     Publish Time: 2020-06-22      Origin: Site


Bestlink Factory Stone Guillotine Machine for Making Wall Stones


It suitable for splitting all types of natural and artifical stones, used for the production of large and small materials for mosaic and stone flooring. And characterized by high reliability and easy handling, every splitting machine can be integrated in a production line, especially designed according to your needs.




Using our splitting machines you could produce a wide range of products like: Cobble stones, Paving stones, Tiles for paving and cladding, Wall stones and Kerb stones, etc. Our machines are known also as splitters, hydraulic splitting machines, stone splitter or stone cutter (for rustic products).


The hydraulic system of our machines mainly uses the hydraulic components of German Bosch Rexroth with stable performance, no oil leakage, low noise and long service life and so on.

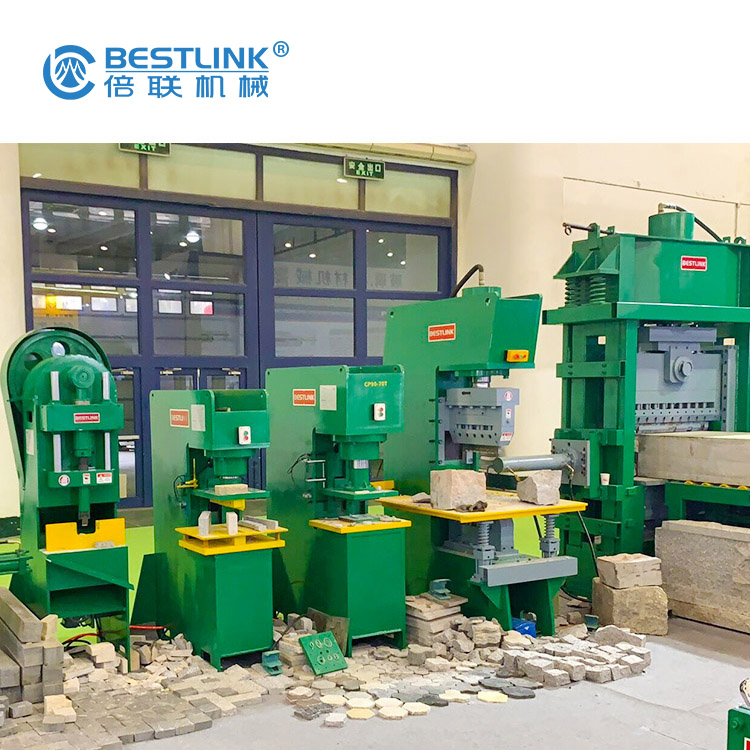

splitting machine (118).jpg




Electrical system of our machines is safe, reliable, convenient and flexible and the components are from the brands of Schneider and Omron.


The machines can be operated automatically or manually and move continuously or single-step. Equipped with a separate control cabinet, the electric control part can be operated by a total station and a button box. The start-up and operation is very convenient.

The character of the machine is of intelligent gear cutting head, can adjust itself according to the condition of the stone face, and then, generate hydraulic power to split the stone down in a spot. Therefore it is of high speed, good quality, low consumption and so on, which can improve products quality and production efficiency in a high degree.


Our Advantage:
1. Complete full series with different models for choice
2. International brand-name core components
German Bosch Rexroth
Omron and Schneider
Siemens Motor
3. Blade adaptation system with floating teeth
4. Design according to client's request available
5. Combination of production line with suitable conveyor available
6. CE certificate

There are 6 normal model:

BRT20T BRT40T BRT70T BRT160T BRT200T BRT320T

splitting machine (60).jpg


Open  frame

BRT20T 160*180 BRT40T 240*320 BRT70T 400*350 BRT100T 400*400 BRT160T 500*550
Splitting  pressure(tons) 20 40 70 100 160
Max splitting  width(mm) 160 240 400 400 500
Max splitting  height(mm) 180 320 350 400 550
Electric  power(kw) 7.5 11 11 11 15
Standard  electric supply 3phase,380V/50Hz,customized motor will be available.
Electric  current (A) 15 22.6 22.6 25 30
Oil flux  (L/min.) 61 150 185 192 240
Oil tank  cubage (L) 320 450 550 550 780
Overall  size(L*W*H) 1145*1000*2030 1260*1000*2300 1500*1200*2520 1500*1200*2520 1970*1200*3300mm
Weight (kg) 2300 2900 3200
5300




Close  frame BRT70T 800*300  M BRT120T  1000X300 M BRT200T  1200X500 M BRT320T  1200*800 M
Splitting  pressure 70 120 200 320
Max splitting  width 800 1000 1200 1200
Max splitting  height 300 300 500 800
Electric  power 11 15 15 22
Standard  electric supply 3phase,380V/50Hz,customized motor will be available.
Electric  current 22 30 30 42.5
Oil flux  (L/min.) 185 210 240 300
Oil tank  cubage (L) 550 780 850 850
Overall  size(L*W*H) 1570*1140*2490 1700*1200*2850 2010*1240*2855 2370*1500*3840mm
Weight 3000 4000 6000 8000



splitting machine (3).jpg



Close  frame(four blades) BRT50T 400*200  MF BRT70T 600*300  MF BRT100T 600*300  MF BRT120T  1000*300 MF BRT200T  1000*400 MF BRT320T  1200*800 MF
Splitting  pressure 50 70 100 120 200 320
Max splitting  width 400 600 600 1000 10000 1200
Max splitting  height 200 300 300 300 400 800
Electric  power 11 11 11 15 15 22
Standard  electric supply 3phase,380V/50Hz,customized motor will be available.
Electric  current 22 22 22 30 30 43
Oil flux  (L/min.) 160 185 192 210 240 240
Oil tank  cubage (L) 450 550 550 780 850 850
Overall  size(L*W*H) 2570*1140*2490 2770*1140*2490 2770*1140*2490 3300*1200*2850 3500*1240*2855 3870*1500*3840mm
Weight 2500 3200 3800 4200 6300

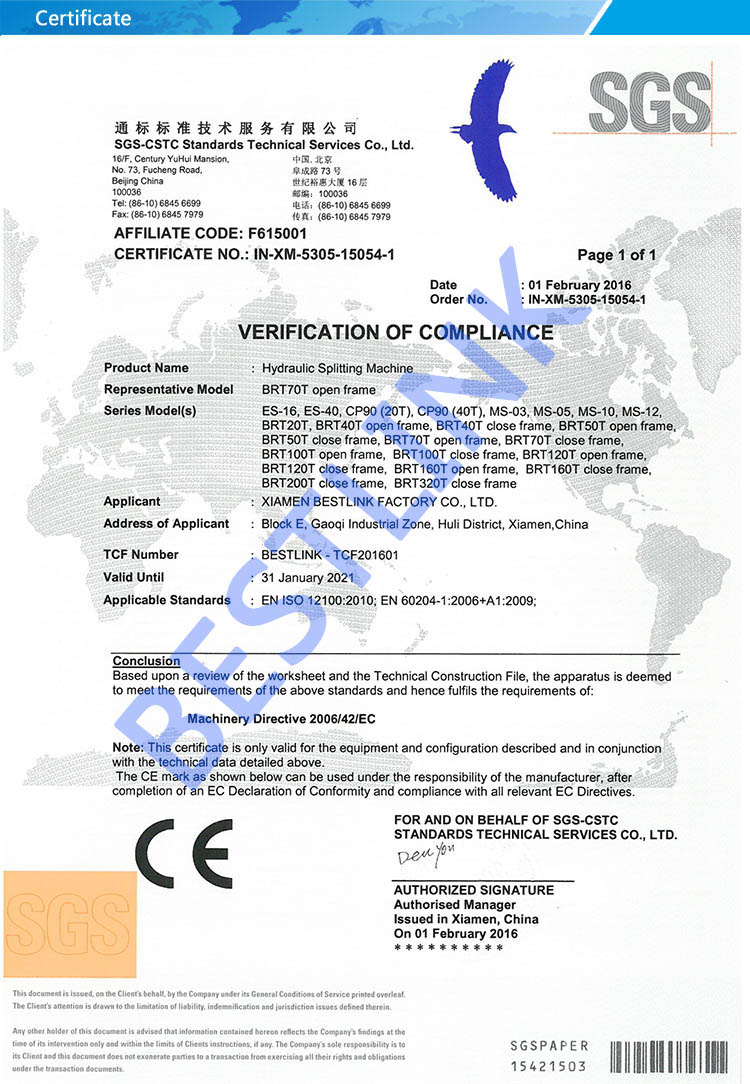

CE of Splitting Machine
