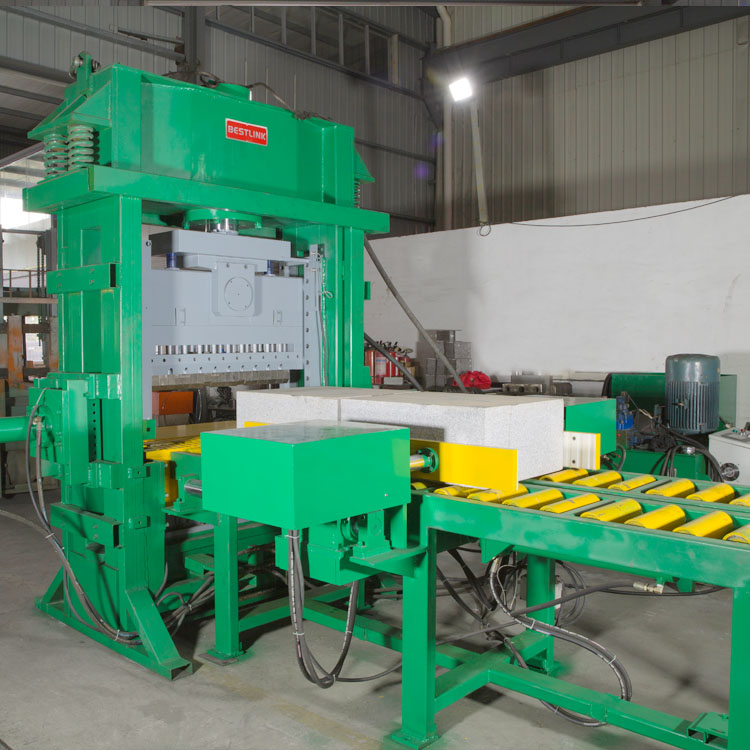

Semi Automatic Stone Concrete Block Splitting Machine
BESTLINK
The "MF" series splitting machinery are widely used in automatic splitting lines for both concrete and saw cut face stone, it's equipped with four blades to ensure a perfect split every time on all four sides of the products.
Model | BRT20T 600*300 MF | BRT50T 400*200 MF | BRT70T 600*300 MF | BRT100T 600*300 MF | BRT120T 1000*300 MF |
Splitting force(tons) | 20 | 50 | 70 | 100 | 120 |
Max splitting width(mm) | 600 | 400 | 600 | 600 | 1000 |
Max splitting height(mm) | 300 | 200 | 300 | 300 | 300 |
Electric power(kw) | 7.5 | 11 | 11 | 11 | 15 |
Electric current (A) | 15 | 22 | 22 | 22 | 30 |
Oil flux (L/min.) | 61 | 160 | 185 | 192 | 210 |
Oil tank cubage (L) | 320 | 450 | 550 | 550 | 780 |
Overall size(L*W*H) | 1750*3200*1960 | 2570*1140*2490 | 2770*1140*2490 | 2770*1140*2490 | 3300*1200*2850 |
Weight(kg) | 1200 | 2500 | 3200 | 3800 | 4200 |
The "MF" series splitting machinery are widely used in automatic splitting lines for both concrete and saw cut face stone, it's equipped with four blades to ensure a perfect split every time on all four sides of the products.
Model | BRT20T 600*300 MF | BRT50T 400*200 MF | BRT70T 600*300 MF | BRT100T 600*300 MF | BRT120T 1000*300 MF |
Splitting force(tons) | 20 | 50 | 70 | 100 | 120 |
Max splitting width(mm) | 600 | 400 | 600 | 600 | 1000 |
Max splitting height(mm) | 300 | 200 | 300 | 300 | 300 |
Electric power(kw) | 7.5 | 11 | 11 | 11 | 15 |
Electric current (A) | 15 | 22 | 22 | 22 | 30 |
Oil flux (L/min.) | 61 | 160 | 185 | 192 | 210 |
Oil tank cubage (L) | 320 | 450 | 550 | 550 | 780 |
Overall size(L*W*H) | 1750*3200*1960 | 2570*1140*2490 | 2770*1140*2490 | 2770*1140*2490 | 3300*1200*2850 |
Weight(kg) | 1200 | 2500 | 3200 | 3800 | 4200 |
