Natural Lava Stone Guillotine

Views: 0     Author: Site Editor     Publish Time: 2020-07-24      Origin: Site

natural lava stone guillotine


Hydraulic operated stone splitting machines can be use for every kind of stone. The machinery is primarily designed for the manufacture of tiles, curbstones, and split-faced walling, but can also be adapted to other areas of the stone industry. The crushing power and long blade, Broadway and Winstar models are adequate for large wall stone and curbing production.

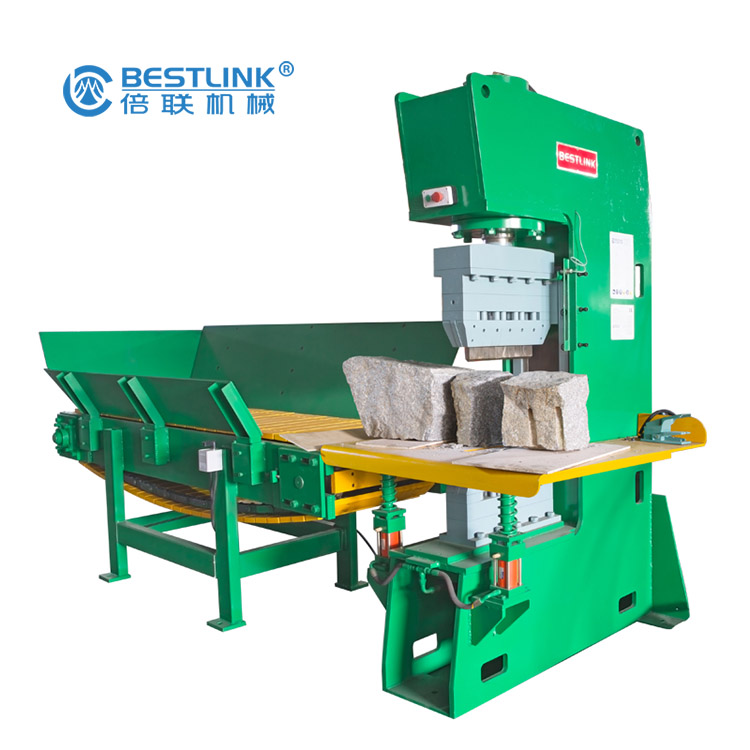

splitting machine (69)
The production line of stone machinery be supplied in many sizes and can be adapted to many uses in the stone industry. Paving stone and tile cutters will want to see the Igloo Model. Ease of operation and fast splitting are sure to increase production compared to underpowered splitters.

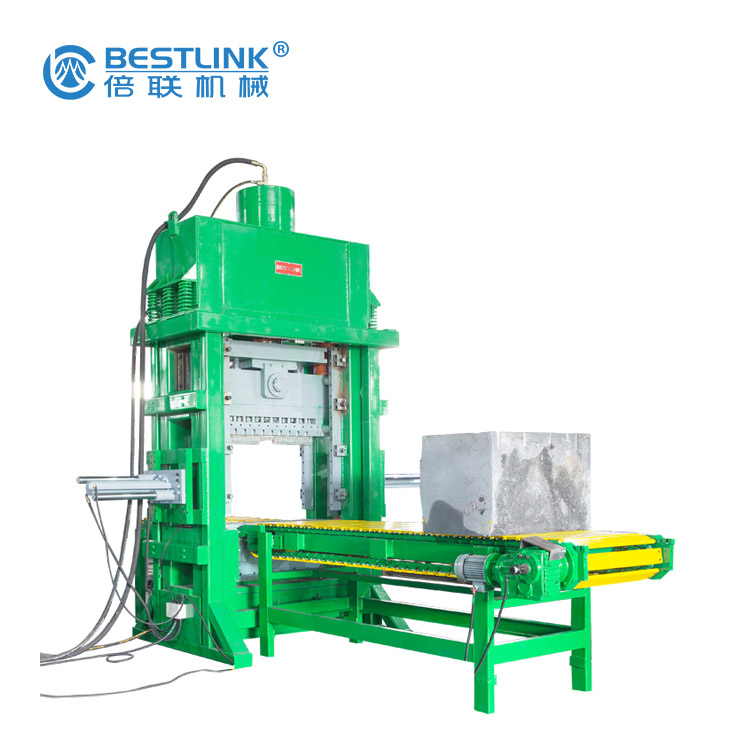

splitting machine (3)
For large block splitting operations encountered in the stone industry, integrated conveyor systems and long blades and crushing power make splitting of large blocks an easy project. The well-know brand breaking technology, along with the absolute silence of the new pumps, completed by the high up/down motion speed of the piston ( up to 260 mm/sec. For PSM 320- 54 ton- type machines).

splitting machine (91)
We provide several models for your various choice, like BRT20T, BRT40T, etc. Of course, we also can design a special model based on your detailed requirement.


Model no.
BRT320-1200*800 BRT160T-500*550 BRT70-400*350 BRT40T-240*320

BRT20T-160*180
splitting pressure 320t 160T 70T 40T 20T
max. splitting width 1200mm 500mm 400mm 240mm 160mm
max. splitting height 800mm 550mm 350mm 320mm 180mm
adaption of upper
/lower blade
36*20mm 30*15mm 20*10mm 15*10 10*7mm
rated power 22KW 15KW 11KW 11KW 7.5KW
rated voltage 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
electric current 42.5A 30A 22.6A 22.6A 15A
main oil
cylinder data
Φ400/Φ280-850 Φ280/Φ200-600 Φ200/Φ140-360 Φ160/Φ110-340 Φ110/Φ80-200
oil advanced speed 40mm/s 76.6mm/s 108mm/s 167mm/s 96mm/s
overall size
(L*W*H)/mm
2370*1500*3840 1970*1200*3300 1500*1200*2520 1260*1000*2300 1145*1000*2030
weight 8000KG 5300KG 3200KG 2900KG 2300KG
