The Multi Purpose Stone Stamping Machine is very popular in the world, such as USA, India, UK, etc.
3 IN 1 FUNCTION: STAMPING, CUTTING, SPLITTING.
The hydraulic recycling / stamping / pressing machine is specially designed for changing the leftovers of slabs or tiles into amazing paving stones. Which could stamp more than 45 different shapes by different dies with hydraulic system inside. Special designs according to your requirements are available.
This machine has very compact structure. It is easily operated and maintained.
It has the output around 100-120m² per day.
1. Hydraulic Stamping Machine Specification
The smallest splitting power is 20 ton, maximum processing stone size is 30cm×30cm×5cm(L*W*H). We can adjust the hydraulic system with 40tons and 70tons splitting force, then it can process the slabs up to 8cm-10cm in thickness.
| Model | CP90 (20T) | CP90 (40T) | CP90 (SA) | CP90 (FA) |
|---|---|---|---|---|
| Hydraulic Pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
| Spitting Power | 20T | 40T | 40T | 40T |
| Electric Motor Power | 4kw | 7.5kw | 7.5kw | 9kw |
| Max Slab stamping size | 30*30*3cm | 30*30*5cm | 30*30*8cm | 30*30*8cm |
| Max splitting Length (cm) | 30 | 35 | Semi-automatic | Fully-auto + air compressor |
| Max splitting height (Cm) | 1-5 | 5-8 | 1-5 | 1-8 |
| Machine Size (cm) | 80*100*150 | 80*100*150 | 80*100*150 | 230*95*185 |
| Net Weight (kg) | 500 | 580 | 650 | 1500 |
| Function | Stamping, cutting, splitting | Stamping, cutting, splitting | Stamping only | Stamping only, consumption 1m3/min |
2. Online Video Address
You can check how this stone pressing machine working on Youtube:
https://youtu.be/WuN_MpAAz8U
https://youtu.be/7iJJWBZ-rt8
https://youtu.be/xU_ZsMXL5V8
https://youtu.be/2yKVmTcaQq8
3. Other Stone pressing machine series

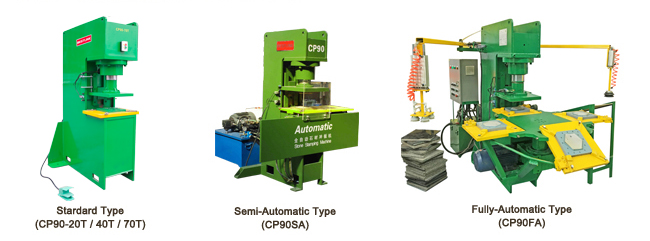

We also provide semi-automatic and full automatic type stone pressing machine.
4. Packing
The stone pressing machine will be packinged into plywood case.
5. The information you may like to know before order:
Q: Quality Control
A: We have a rigorous production process and every step has strict control, in order to avoid any mistake.
Meanwhile, we have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Q: After Services:
A: 1. Our sales team will response for your question within 24 hours (Holidays Excluded).
2. Technical Support will be available in any time.
3. Free replacement will provide once the failure confirmed caused by our product quality.
Q: Methods of Payment:
A: Normally, we will accept the payment by T/T (Telegraphic Transfer) or Irrevocable L/C at sight.
For few payment, it also can be paid by Western Union or MoneyGram
Q: Delivery time
A: Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
Q: Shipping way
A: The machine has kind of weight and cbm, normally, we will suggest to ship them by sea.
For the small one, it can be sent by air,
Q: Certificate
A: Our stone machine has CE certificate
