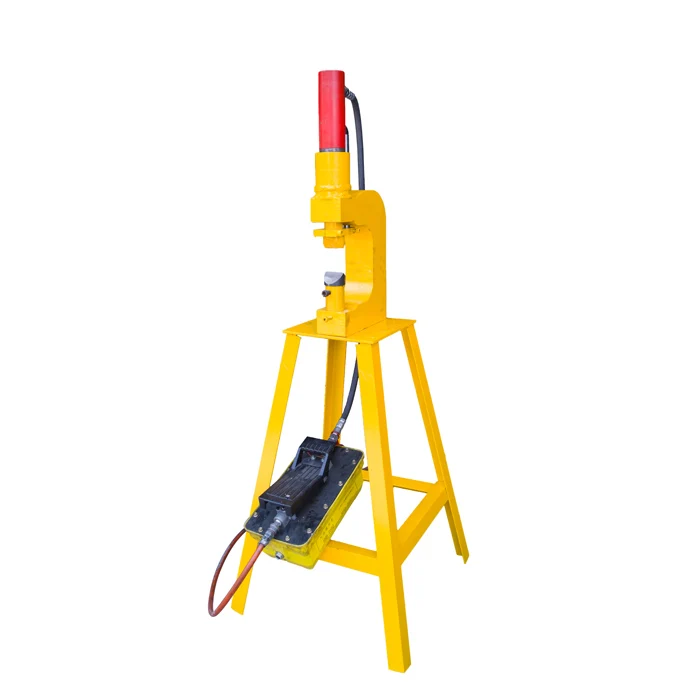

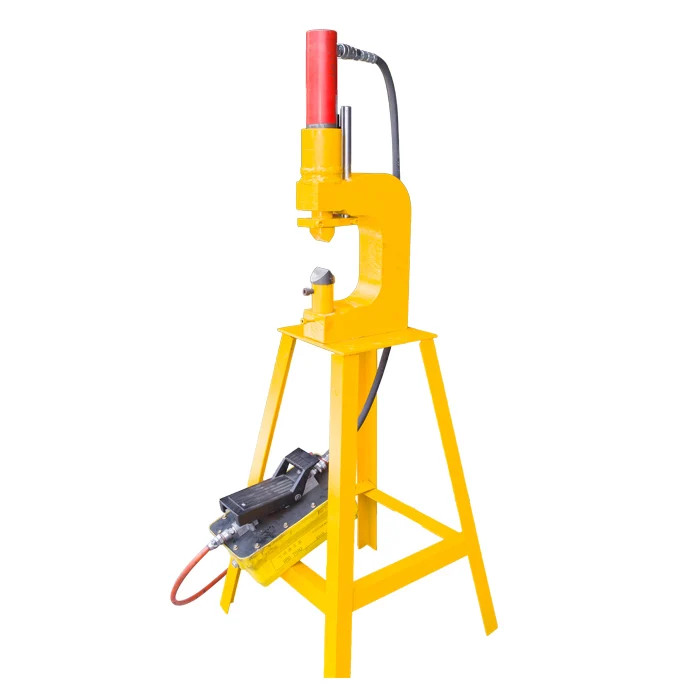

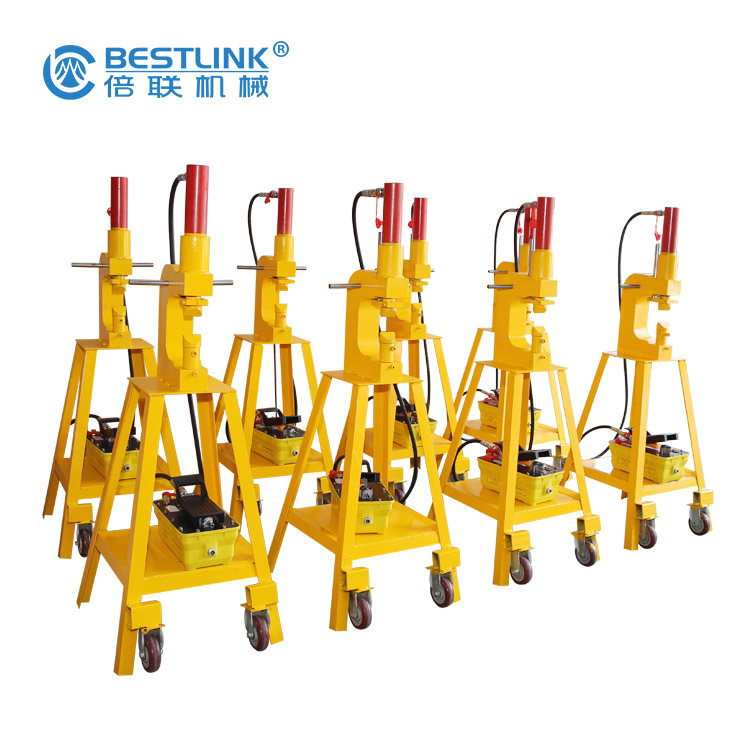

Air splitter Mighty C hydraulic thin veneer splitting machine for sale

Bestlink Air splitter Mighty C hydraulic thin veneer splitting machine for sale

Technical Parameter:

Splitting force:10T;

Travelling stroke(max):100mm;

Work pressure:0.6-0.7Mpa;

Air Consumption:250-350L/min.

Ddvantages:

• Portable - Indoor or Outdoor Use

• Increased Productivity

• Built to Work

• Easy to Maintain

• Eliminates Need for Costly Saw Blades

Operation:

1. Connect compressed air to pneumatic hydraulic pump;

2.Put stone between the upper and lower blades(between

E and F)

3.Press the foot switch B part,upper blade F goes down and cuts stone

4.Press the foot switch A part,upper blade F returns.
