2020 Hand Cut Mosaic Kitchen Backsplash Cutting Machine

Views: 0     Author: Site Editor     Publish Time: 2020-12-10      Origin: Site

Hand Cut Mosaic Kitchen Backsplash Cutting Machine

The mosaic chopping machines are the result of a very long experience, we acquired in the construction of this kind of tools.
The weight of each part and the relation occurring between them are fully optimized with the result that is possible to obtain a precise and effective cut just with a minimum effort.


splitting machine (118)


Both of the machines are realized for cutting various sizes of stones: Tesserae, cubes& all the shapes desired.
The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron.
The diameter of the fly-wheel of teseus model measures 40cm; The diameter of the fly-wheel of its smaller twin machine MS-02/02E corresponds to 30cm.


mosaic chopping machine (32)


Both the chopping machines are equipped with two blades in hardened steel: The lower one is secured to the structure and doesn't move; The upper one is driven by the fly-wheel and falls in a perpendicular on the lower. Our chopping machines are produced 100% in Italy in all of their components and special care is dedicated to the choice of very high quality materials. This construction process warranties an absolute strength and resistance giving to the teseus and to the MS-02/02E an extremely long life, almost everlasting! ! Both models are provided with a replacement spare blades.


Hydraulic stone mosaic splitting machine



Model No MS-02 (manual) MS-02S (manual+stand) MS-02E (electric) MS-03 (manual) MS-12(hydraulic) MS-40(hydraulic) MS-2A
Splitting Force 2 tons 2 tons 2 tons 2tons 12 tons 40 tons 2 tons
Max Cutting Width 240 mm 240 mm 240 mm 120 mm 240 mm 300mm 20mm
Max Cutting height 65 mm 65 mm 65 mm 30 mm 100 mm(40mm for granite) 130mm (80mm for granite) 10-20mm
Power Supply / / / / 3.0 kw 5.5kw 0.37kw
Oil Tank / / / / 30 L 60L /
Overall Size 500*400*700 mm 1500*700*500mm  900*400*400mm 630*430*600CM 500*600*1600 mm 700*800*1700mm 1100*650*1200mm
Net Weight

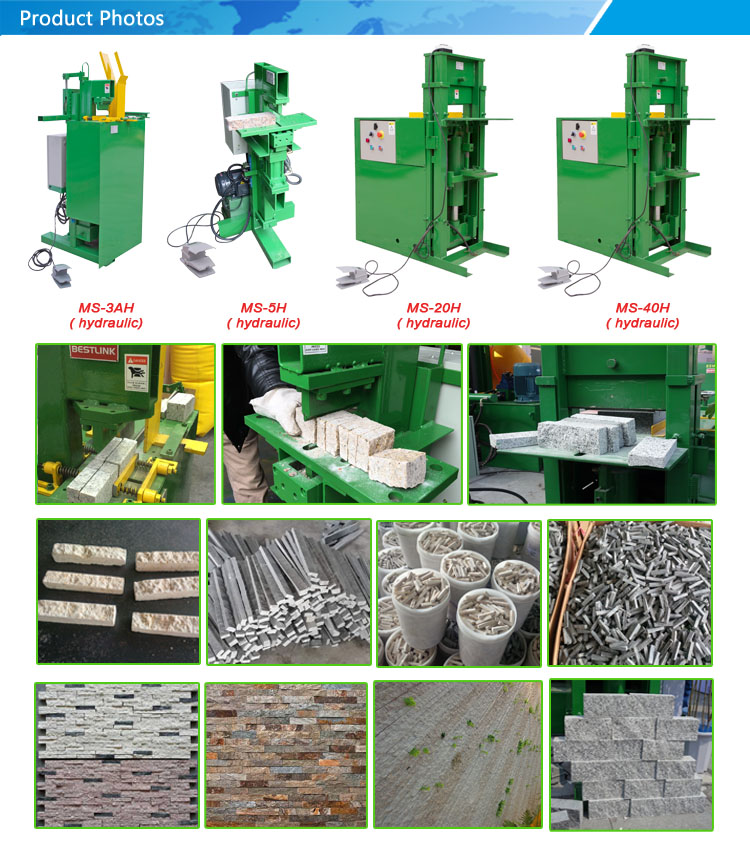

Hydraulic stone mosaic splitting machine
