Semi-Automatic Best Paving Stone Stamping Machines for Square Tiles

loading

Share to:
sharethis sharing button
Semi-Automatic Best Paving Stone Stamping Machines for Square Tiles
Availability:
Quantity:
  • CP90 Paving Stone Stamping Machines

  • BESTLINK

Semi-Automatic Best Paving Stone Stamping Machines for Square Tiles


Stone Granite Marble Press/Stamp Machine CP90 Introduction :

Stone pressing machine applicable for making paver tiles.

The machine works by hydraulic to stamp out the pavers and diversified patterns available by changing the moulds.

The oil cylinder is on the upper position. This creates a good air proof result and also protects is enlarged.  The manual handle provides safe operation.

The machine is equipped with high quality engine for long service life. It is smart and easy to operate.



Feature :

Hydraulic stone press machine to recycle granite waste or left over from countertops making pavers for plaza, street, garden, etc.

The machine can stamp the paver bricks of various patterns and the dies / shapes are easy to change.

Also It can split the stone into two pieces to make cladding stone and wall stones for natural faces.

It is a smart machine for granite fabricators to recycle the waste turing waste into Gold.


stamping machine (23)


With these high quality components, our machines get a high performance and has a long life.
What's more, the clients can replace the components very easily in his own country when any problem happened.

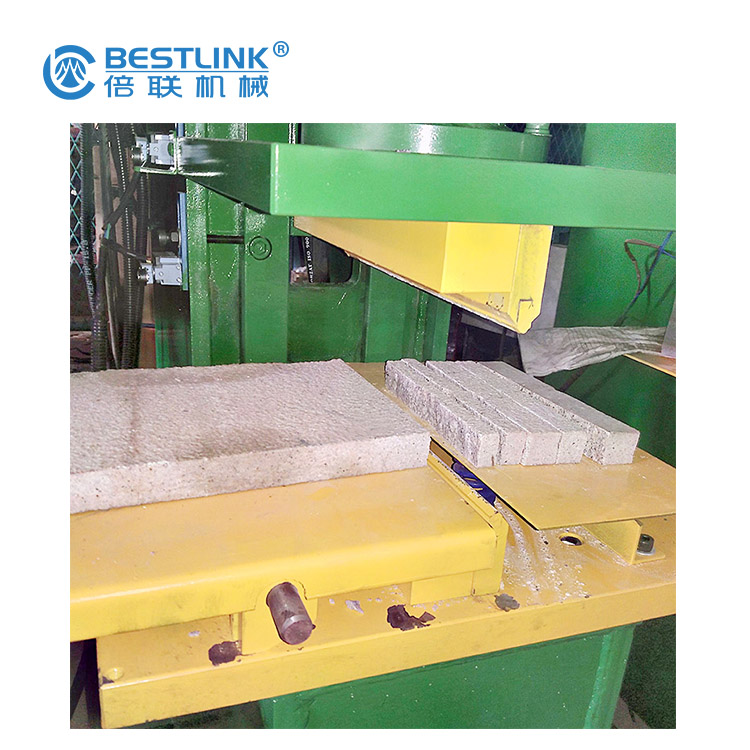

The latest model of the stamping machine has 3 functions: Stamping (pressing), cutting, splitting.


stone pressing machines

stamping machine (2)

stamping machine (14)

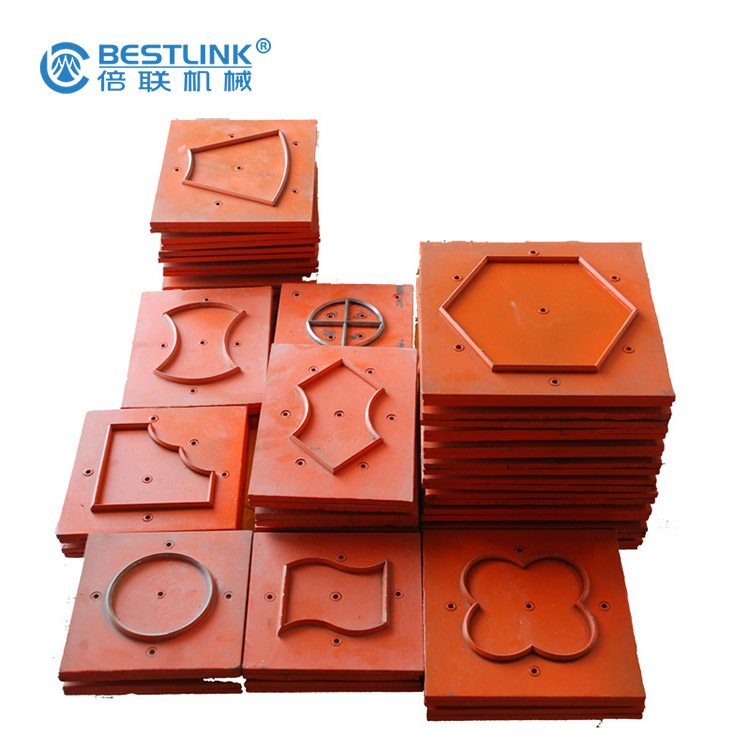

There are 40 different moulds (dies) for the stone stamping machine. Clients can choose it by themselves.

Stamping Machine mould



Hydraulic Stamping Machine Specification

Model CP90 (20T) CP90 (40T) CP90 (SA) CP90 (FA)
Hydraulic Pressure 20Mpa 20Mpa 20Mpa 20Mpa
Spitting Power 20T 40T 40T 40T
Electric Motor Power 4kw 7.5kw 7.5kw 9kw
Max Slab stamping size 30*30*3cm 30*30*5cm 30*30*8cm 30*30*8cm
Max splitting Length (cm) 30 35 Semi-automatic Fully-auto + air compressor
Max splitting height (Cm) 1-5 5-8 1-5 1-8
Machine Size (cm) 80*100*150 80*100*150 80*100*150 230*95*185
Net Weight (kg) 500 580 650 1500
Function Stamping, cutting, splitting Stamping, cutting, splitting Stamping only Stamping only, consumption 1m3/min

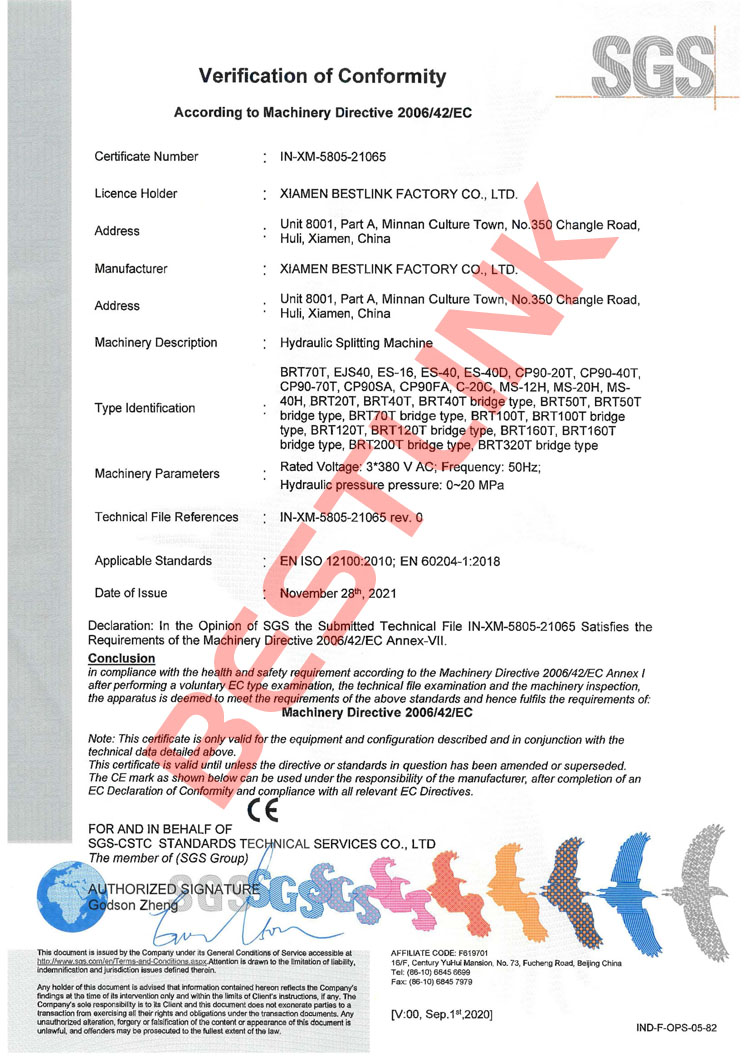

CE of Hydraulic Splitting Machine

CE Splitting Machine

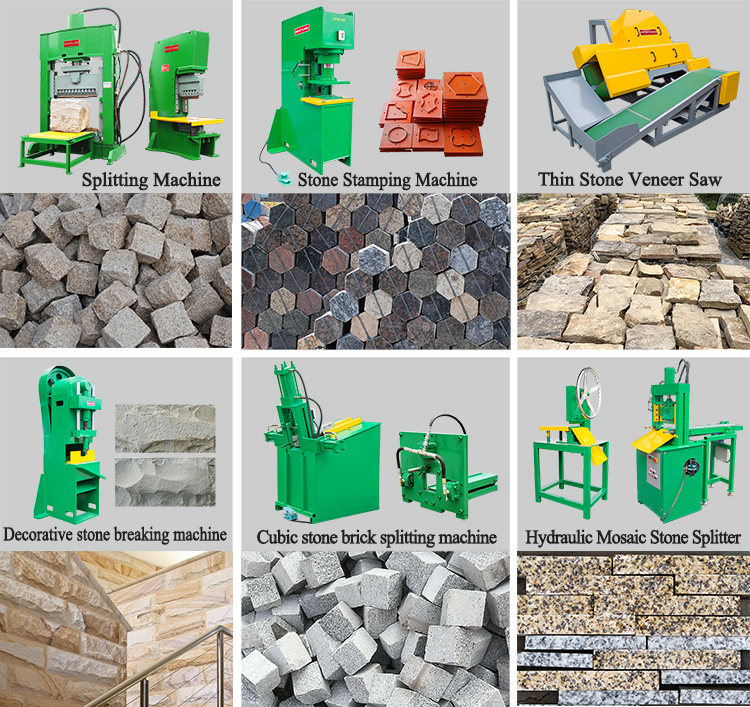

Stone Machiney
