Hydraulic Mosaic Split Face Wall Cladding Stone Splitter for Cubes Granite

Views:1     Author:Site Editor     Publish Time: 2020-07-15      Origin:Site

Hydraulic Mosaic Split Face Wall Cladding Stone Splitter for Cubes Granite

Hydraulic Mosaic Split Face Wall Cladding Stone Splitter for Cubes Granite

A large number of the small manual mosaic cutting machine in Stock! ! !

APPLICATION:
For cutting granite, marble, sandstone, slate and strip tile etc.
Work fast, High precision cutting various sizes of stones: Mosaic, tesserae, cubes & all the shapes desired.

TECHNICAL PARAMETERS:

Model

MS-5H

MS-12H

MS-20H

MS-40H

Splitting force (T)

5

12

20

40

Max. Splitting Width  (mm)

120

240

240

300

Max.Splitting Heighth (mm)

100

100

150

150

Power Supply

Hydraulic,1kw

Hydraulic,1kw

Hydraulic,3kw

Hydraulic,5kw

Overall Size (cm)

140*90*60

50*60*160

110*50*140

70*80*170

Weight  (kg)

235

235

350

450

Aplication

split rectangle stone (≤120*50*50mm into two pieces in the length direction,pedal control

Chop various sizes flat face stones (≤L*120*50mm )into:tessera,cubes& all the shapes desired,pedal control.

Chop various sizes flat face stones (≤L*240*100mm )into:tessera,cubes& all the shapes desired,pedal control.

Chop various sizes flat face  stones (≤L*240*150mm )into:tessera,cubes& all the shapes desired,pedal control.



ADVANTAGE:
High efficience, Stable performance. Very easy operation.
Hydraulic system, powerful.
Work fast for mosaic stone and small strip tile cutting.

PICTURES:
here are the Pictures for this splitting machine to cut cubic stone detailes:

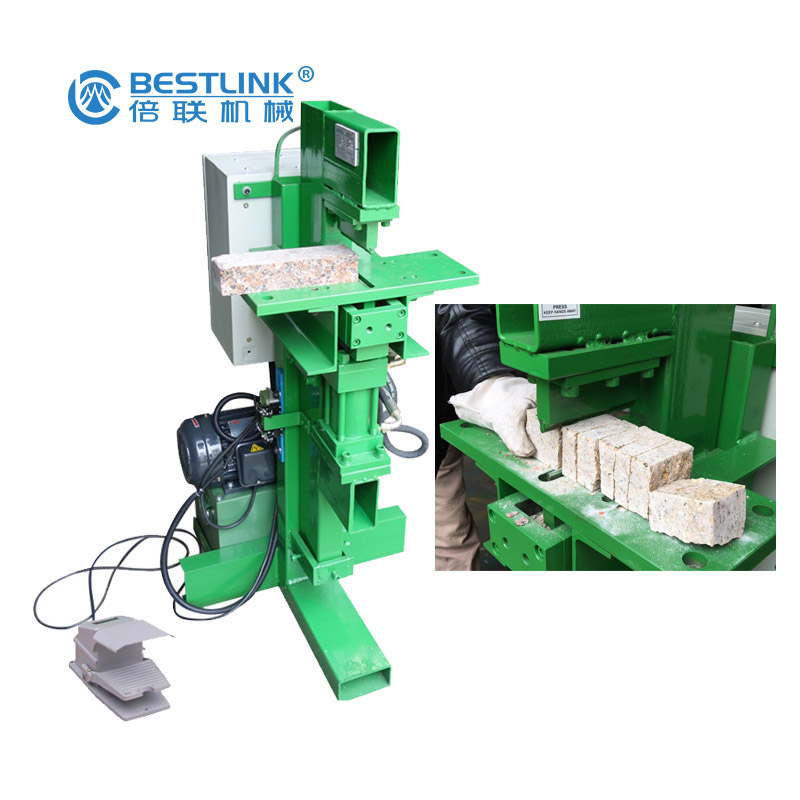

mosaic chopping machine (32)

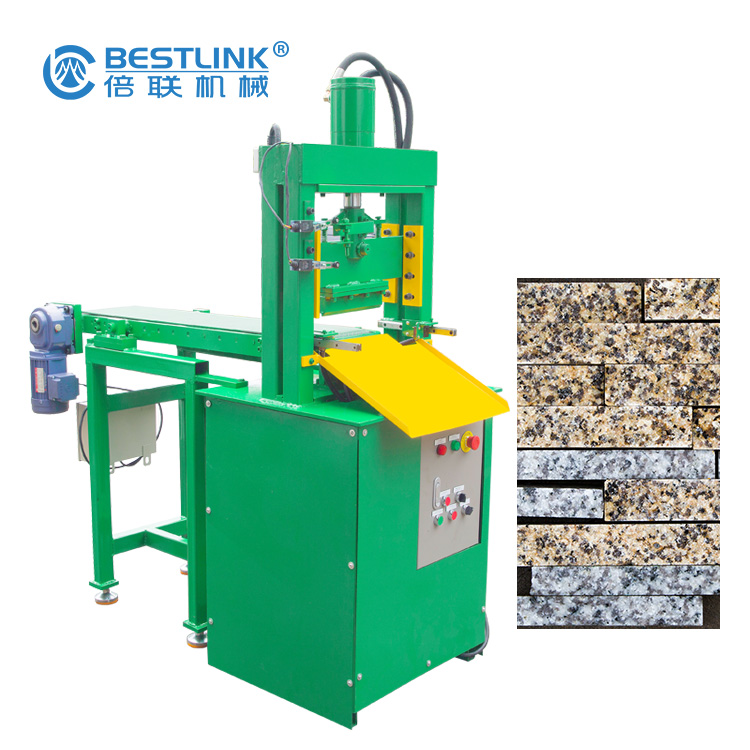

Wall Stone Splitting Machine


CERTIFICATE:
Our hydraulic wall clading mosaic stone cutting machine has CE certificate.


Other Mosaic cutting machine series:
We also have other type of mosaic stone cutting machine for your reference, including manual and electric type.
