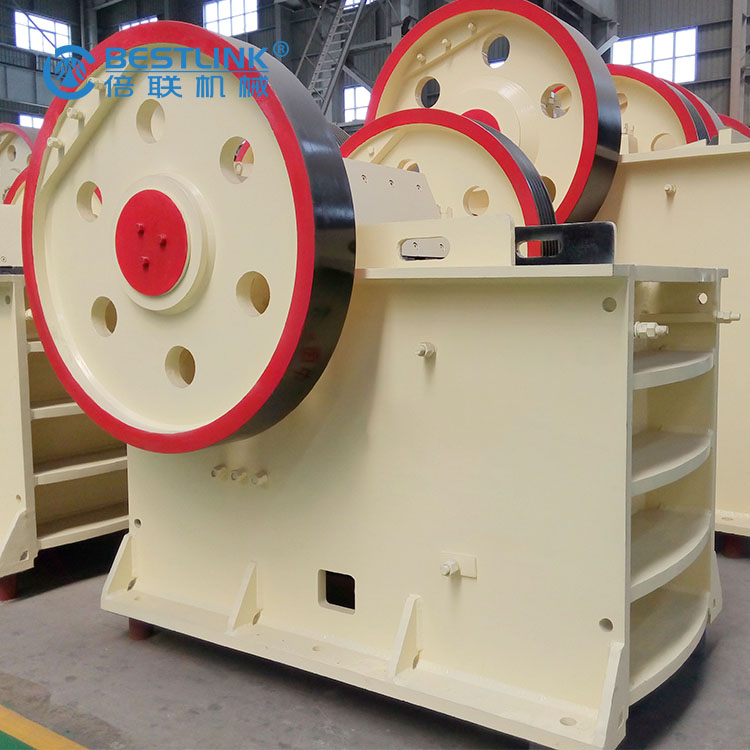

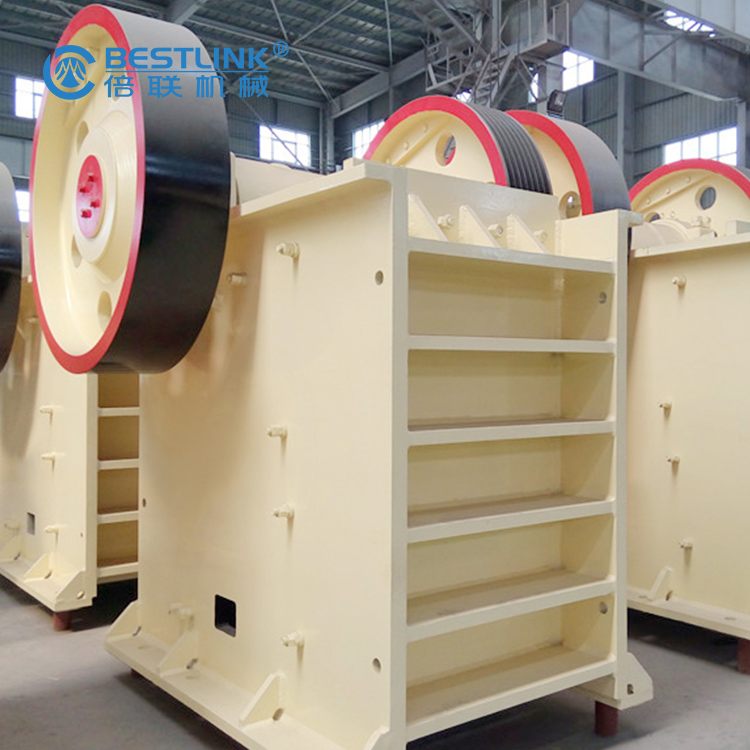

Quarry Stone Crusher, Jaw Crusher (Fine Crushing)
It is used for quarry and factory work. Different machine models are offered here under processing demand. Please let us know your detailed requirements, so that we can offer you the suitable processing line for reference.
Such as the stone type.(hardness, water content)
The original input stone size.
The output stone final size. It gets two or three or four kinds different range.
The daily production, about how many tons per hour.
Any other special demand. Etc.
Technical data:
1. The cavity of mobile jaw crushers is deep and with no dead area, to promote feeding capacity and output.
2. The size of the reduction ratio is big and the production size is even.
3. Adjustment device of the spacer style discharge mouth is convenient and reliable. And primary jaw crusher's adjustment range is big, which improves the flexibility of equipment.
4. Lubrication system of jaw crusher is safe and reliable. Unit replacement is convenient. And the work of maintenance is small.
5. Its structure is simple and operation is reliable. The operation charge is low.
6. Energy conservation: single machine's energy conservation is and the machine system energy conservation is more than twice of the single machine.
7. The adjustment range of the outlet is big, so it can satisfy the requirement of different customers.
Model | PE-250x1200 | |
Feed Opening Size | mm | 250*1200 |
Max. Feeding Size | mm | 210 |
Adjusting Range Of Discharge Opening | mm | 25~60 |
Capacity | t/h | 20~61 |
Rotation Speed Of Eccentric Shaft | r/min | 330 |
Motor Power | kW | 37 |
Total Weight | kg | 9700 |
Dimensions(L*W*H) | mm | 2140*1660*1500 |
There are different machine models of stone crushing plants for your option.
