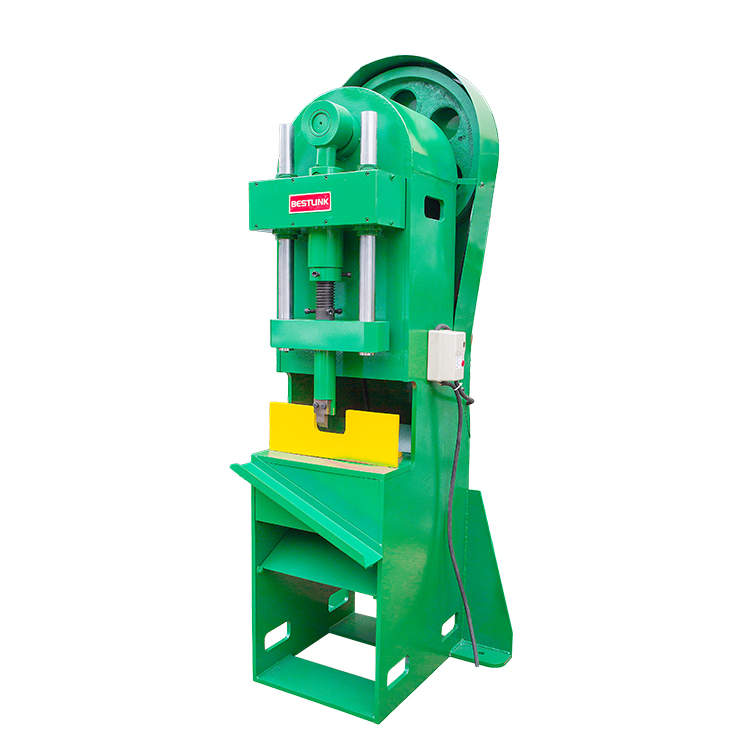

ES-16/40 Electric Mushroom Splitting Stone Machine
BESTLINK
Information
Machinery for stone specialist
Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. it is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in china. Most of our products are of our own proprietary intellectual property rights, such as Pneumatic mobile rock drill,DTH driller,Hydraulic splitting machine, Hydraulic stone stamping machine,Mushroom stone machine.
ES-16 Specification
| Model | ES-16 |
|---|---|
| Motor Power (KW) | 1.5 |
| Stroke (Shot/min.)mm | 140 |
| Blade Number | 1 |
| Max Stone Height (mm) | 300 |
| Min Stone Height (mm) | 50 |
| Max Stone Thickness (mm) | 80 |
| Min Stone Thickness (mm) | 15 |
| Overall Size (mm) | 800*800*2200 |
| Net Weight (kg) | 850 |
| Application | For looping the state, sandstone or marble slabs into a rustic finish, single working blade. |
ES-40 Specification
| Model | ES-40 |
|---|---|
| Motor Power (KW) | 4 |
| Stroke (Shot/min.)mm | 140 |
| Blade Number | 1 |
| Max Stone Height (mm) | 400 |
| Min Stone Height (mm) | 50 |
| Max Stone Thickness (mm) | 80 |
| Min Stone Thickness (mm) | 15 |
| Overall Size (mm) | 1100*950*2500 |
| Net Weight (kg) | 1000 |
| Application | For looping the state, sandstone or marble slabs into a rustic finish, single working blade. |
| Model | ES-40D |
|---|---|
| Motor Power (KW) | 4.5 |
| Stroke (Shot/min.)mm | 140 |
| Blade Number | 2 |
| Max Stone Height (mm) | 600 |
| Min Stone Height (mm) | 50 |
| Max Stone Thickness (mm) | 300 |
| Min Stone Thickness (mm) | 50 |
| Overall Size (mm) | 1800*2800*1800 |
| Net Weight (kg) | 1200 |
| Application | For looping the slabs into rustic finish with two-side operating units in one pass. Fit for soft to hard stone, automatic looping. |
