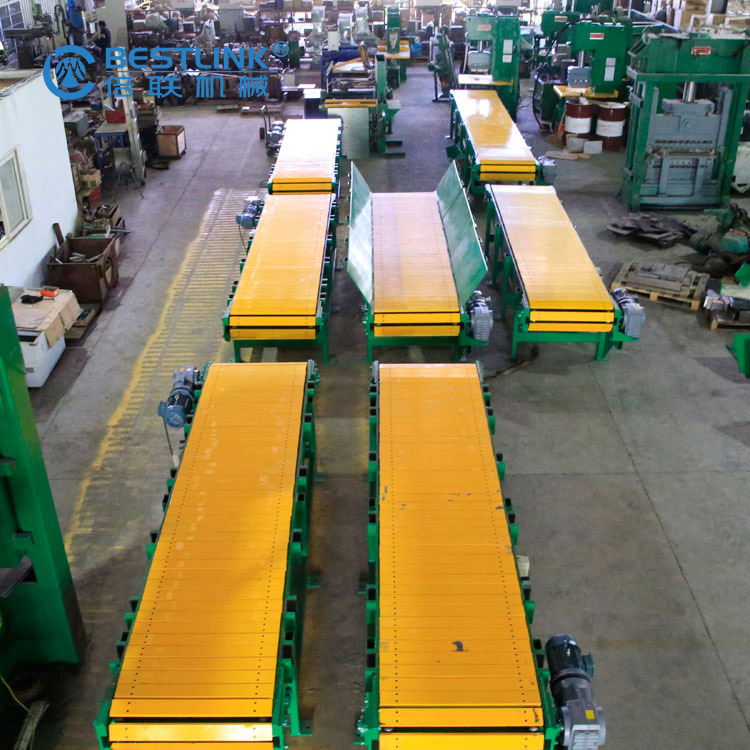

Our conveyor belt enables all materials to be transported throughout the machine feeding and unloading stages. A must-have tools for those working on a continuous production cycle.

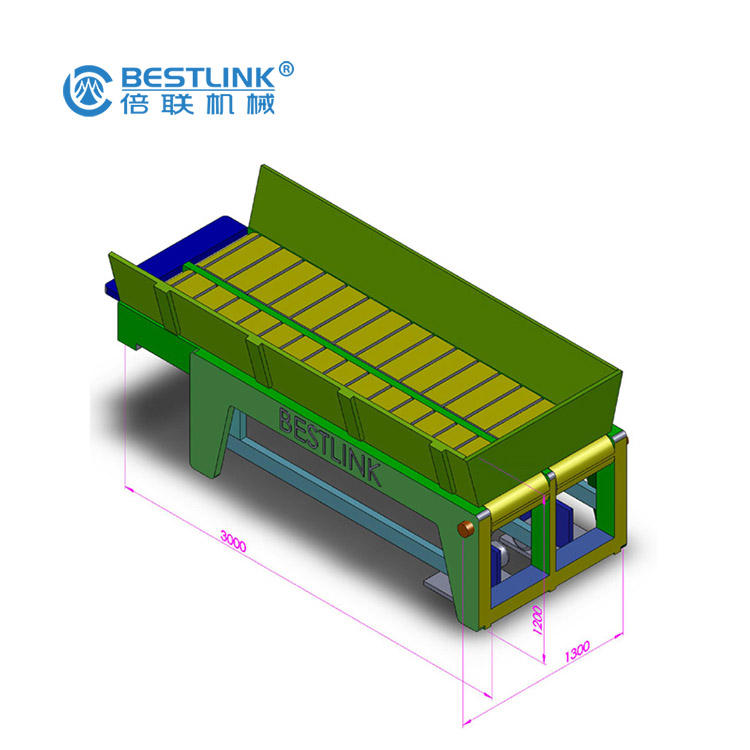

Our conveyor system is a fixed or pivoting conveyor that can be equipped with: rubber, tracked or special steel track belts, single or double motor drive with reciprocating motion.
Each conveyor can be fitted with fixed walls to contain the raw material.
The line for stone splitting, from blocks to the correct size for mosaics, is designed for granite.
This means that the line is suitable for all easily split types of rocks, and meanwhile maximize your productivity and benefits. By request we can prepare the project according to clients conditions.
| Technical specifications: | |||||||||
| Model | PCV1 | PCV2 | PCV3 | PCV4 | PCV5 | PVC6 | PVC7 | PCV8 | |
| Belt length | mm | 2000 | 2000 | 3000 | 2000 | 3000 | 1500 | 1500 | 3500 |
| Belt width | mm | 800 | 1000 | 1000 | 800 | 1000 | 600 | 800 | 1500 |
| Motor drive | pc | 1 | 1 | 1 | 2 | 2 | / | / | 2 |
| Litting cyinder(a) | pc | / | / | / | / | / | / | / | 1 |
| Pivoting cylinder (c) | pc | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Power supply | kw | 2 | 1 | 2 | 1+1 | 2+2 | / | / | 2+2 |
| Height | mm | 950 | 950 | 950 | 950 | 950 | 950 | 950 | 1100 |
| Total width | mm | 1300 | 1300 | 1500 | 1200 | 1500 | 700 | 1150 | 2100 |
| Conveyor weight | kg | 2000 | 2000 | 2500 | 150 | 3500 | 350 | 500 | 4500 |
