CE Certificate Hydraulic Stone Cutter for Marble and Granite

Views:0     Author:Site Editor     Publish Time: 2020-07-15      Origin:Site

CE Certificate Hydraulic Stone Cutter for Marble and Granite

Products features:

Hydraulic stone cutter is suitable for cutting / splitting all types of natural and artificial stones, into cube stone,wall stone,block stone,tiles,paving stone, countertops, vanity tops.

This BRT series stone cutting machine have many model
with bridge frame or open frameand every cutting machine can be integrated in a production line.

It could be especially designed according to your equirements. Customized availabe!

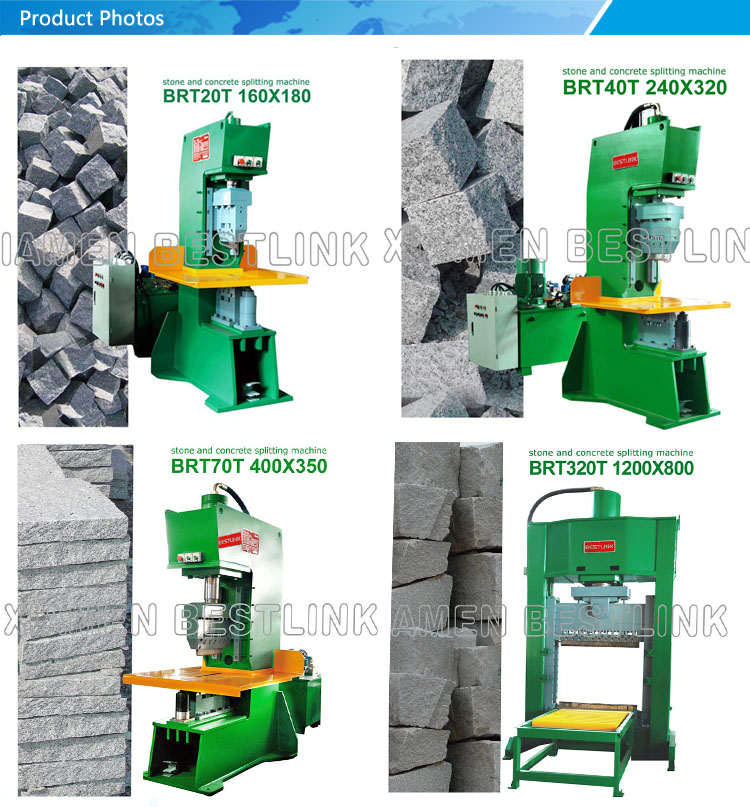

stone splitting machine


Advantages:

1. The electrical control cabinet adopt the French Schneider, with internal layout reasonable and neat, and through the senor switch to facilitate rapid signal to make the movements of the machine consecutive and accurate.



2.The hydraulic system adopts from German Bosch Rexroth, providing sustainable,stable and sufficient power to the machine.



3.With intelligent gear cutting head, it could adjust itself according to the smooth condition of the stone surface.



4. We can design a perfect stone cutting line from blocks to paving stone, wall stone, mosaic, cobble stone, etc, upon the demand of customers.



Here is the technical data:

Model No.BRT320-1200*800-MBRT160T-500*550BRT70T-400*350BRT40T-240*320BRT20T-160*180
Splitting pressure320T160T70T40T20T
Max.splitting width1200mm500mm400mm240mm160mm
Max.splitting height800mm550mm350mm320mm180mm
Floating Teeth Adaptation36*20mm30*15mm20*10mm15*1010*7mm
Power Supply22KW15KW11KW11KW7.5KW
Rated voltage380V/50Hz380V/50Hz380V/50Hz380V/50Hz380V/50Hz
Electric current42.5A30A22.6A22.6A15A
Main oil cylinder dataΦ400/Φ280-850Φ280/Φ200-600Φ200/Φ140-360Φ160/Φ110-340Φ110/Φ80-200
Cylinder advanced speed40mm/s76.6mm/s108mm/s167mm/s96mm/s
Overall size(L*W*H)(MM)2370*1500*38401970*1200*33001500*1200*25201260*1000*23001145*1000*2030
Weight10000KG5300KG3200KG2900KG2300KG


CE certification:

Our BRT series stone cutting machine has the CE certificate, reliable quality, stable performance and with a lot of great feedback.

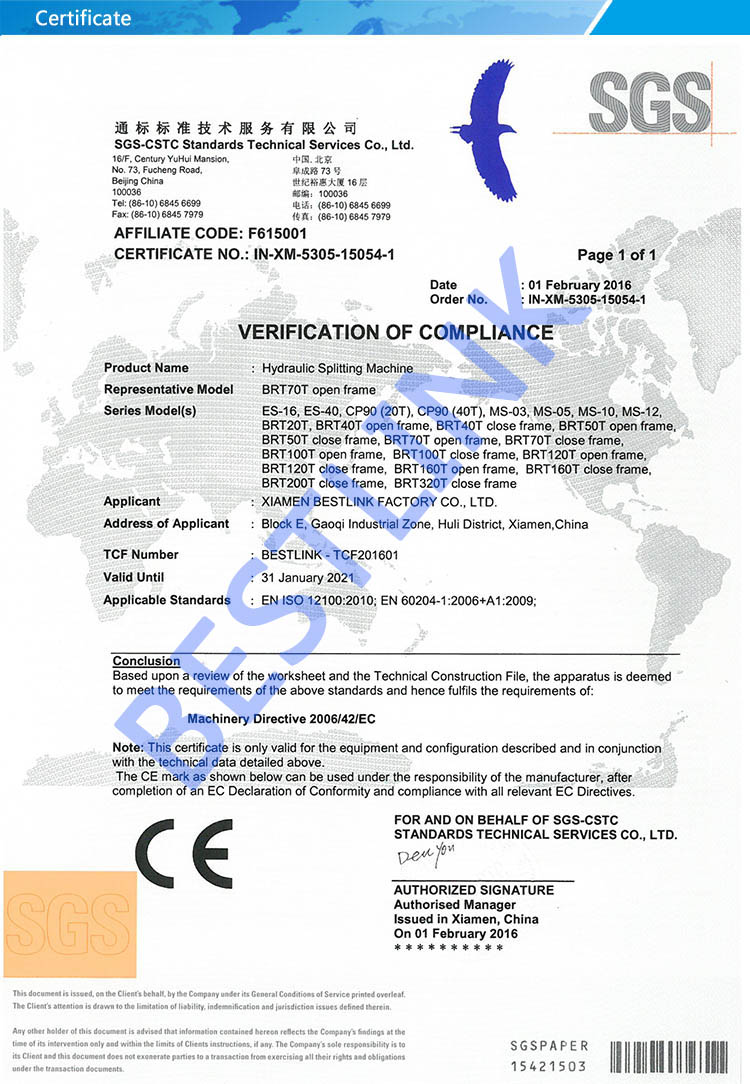

CE of Splitting Machine

Packing details for your reference:

This stone cutting machine will be packing into the exported standard plywood case, or according to your special requirement.

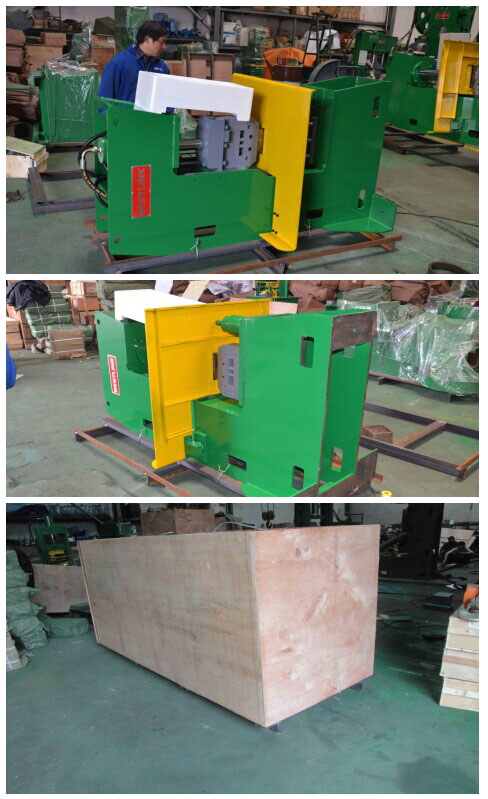

hydraulic splitting machine

Stone Effect and Project case:

This stone cutting machine is great efficiency spliting the stone block:  Mosaic, cubes of paving, rusticated ashlars of walks, kerb stone, rectangular tiles with split edges for paving and convering, binders, small strip of slabs, steps and all the operations of blocks splitting of big size and so on.

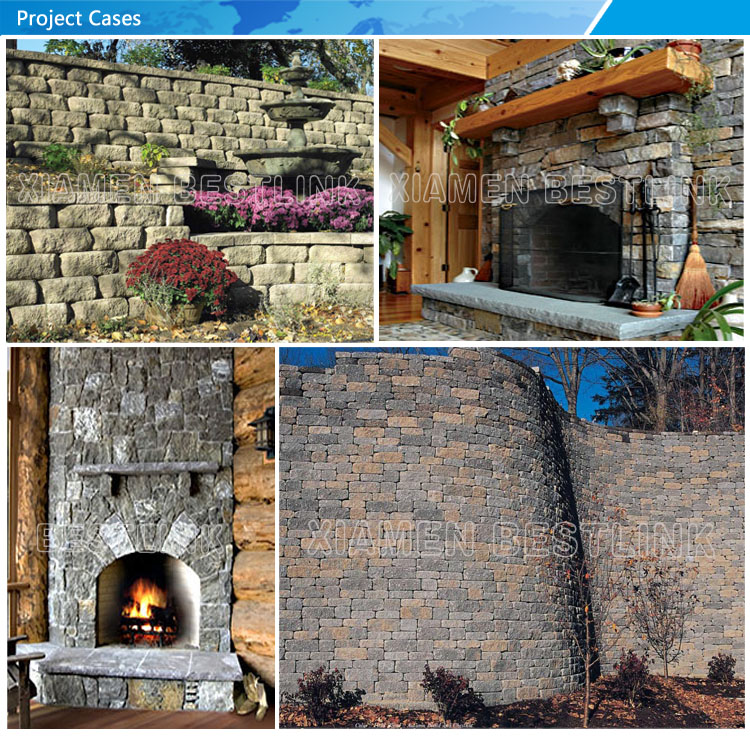

Production Site 05

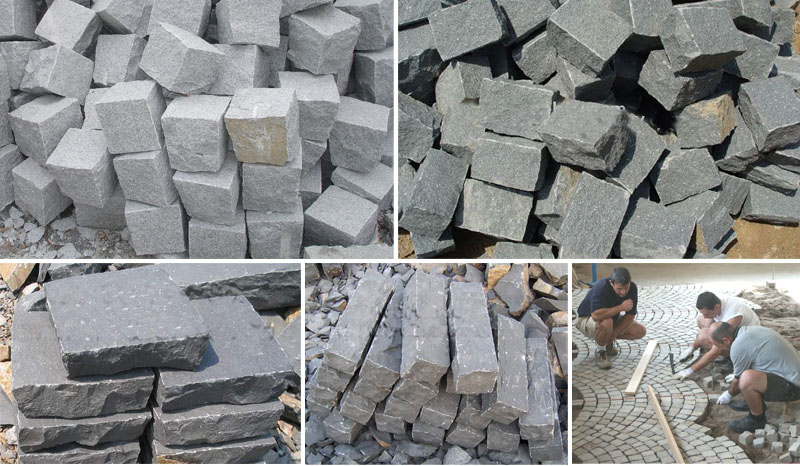

after stone splitting

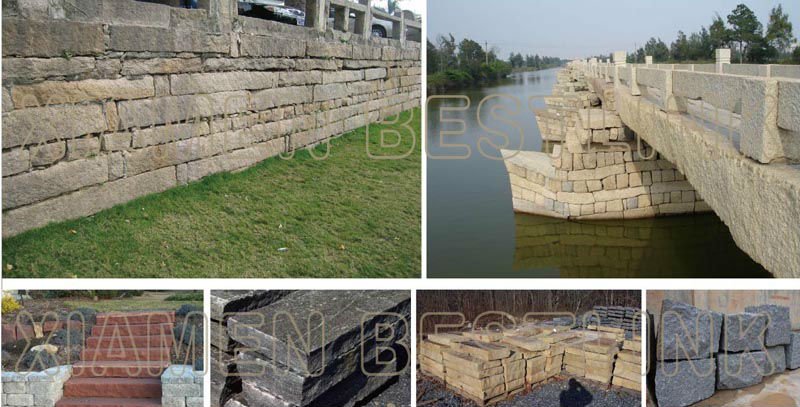

512293492_077
