CP90 is specially designed for changing the leftovers of slabs or tiles into amazing paving stones.

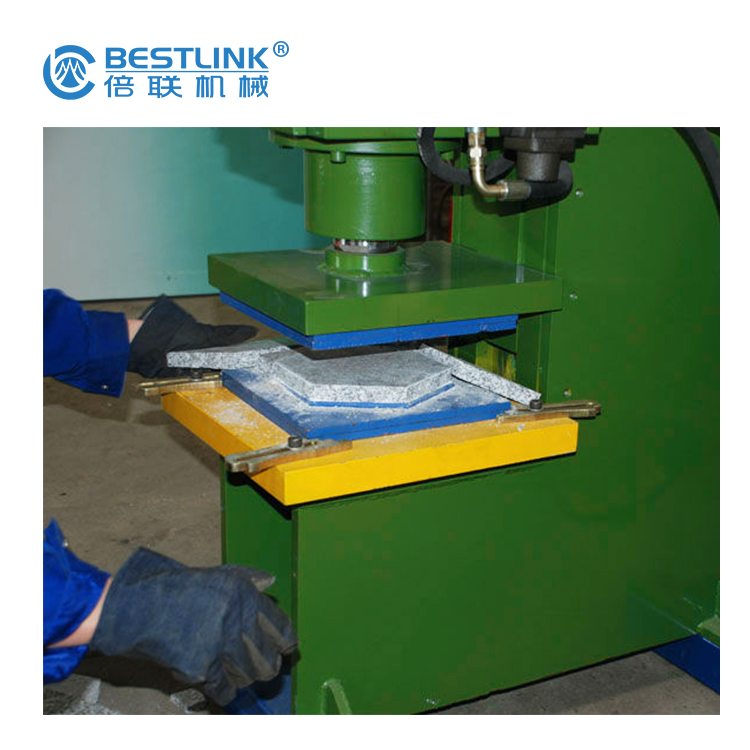

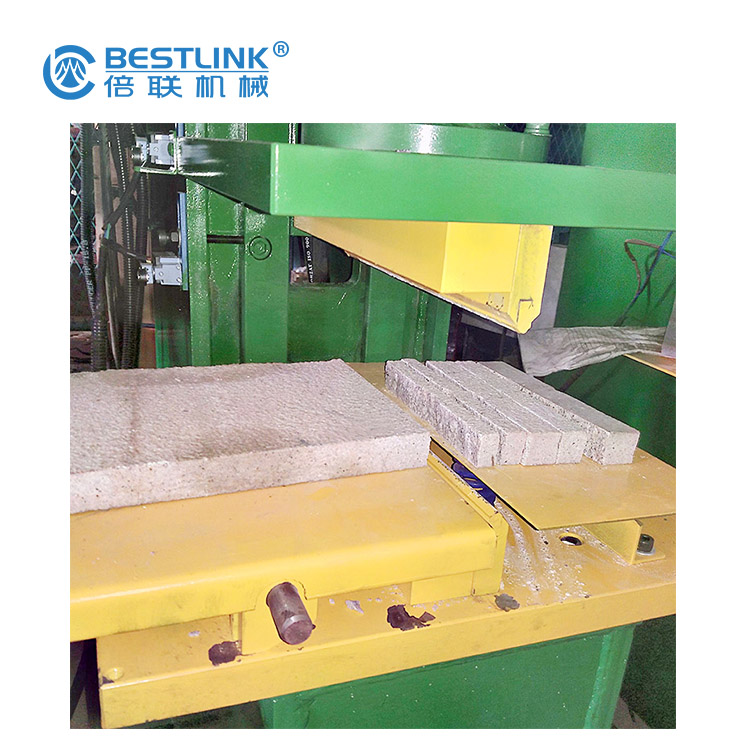

This model CP-90 stamping machine can be made with 20T, 40T or 70T according to the clients' cutting demand. Beslink factory also developed the automatic type.
Technical data for slab stamping machine:
| Model | CP90-20T | CP90-40T | CP90-70T |
| Hydraulic pressure | 20Mpa | 20Mpa | 20Mpa |
| Splitting power | 20T | 40T | 70T |
| Electric power | 4kw | 5.5kw | 7.5kw |
| Pressing size | 30cm×30cm×3cm | 30cm×30cm×5cm | 40*50*10cm |
| Max splitting width | 30cm | 35cm | 35cm |
| Max splitting height | 3cm | 5cm | 10cm |
| Machine size | 80*100*150cm | 80*100*150cm | 100*120*200cm |
| Weight | 750kg | 900kg | 1200kg |
| Fuctions | stamping,splitting | stamping,splitting | stamping,splitting,cutting |
Advantages:
1. Multi-function 3 in 1: stamping,splitting,cutting
2 .Reuse the letfover and slabs.

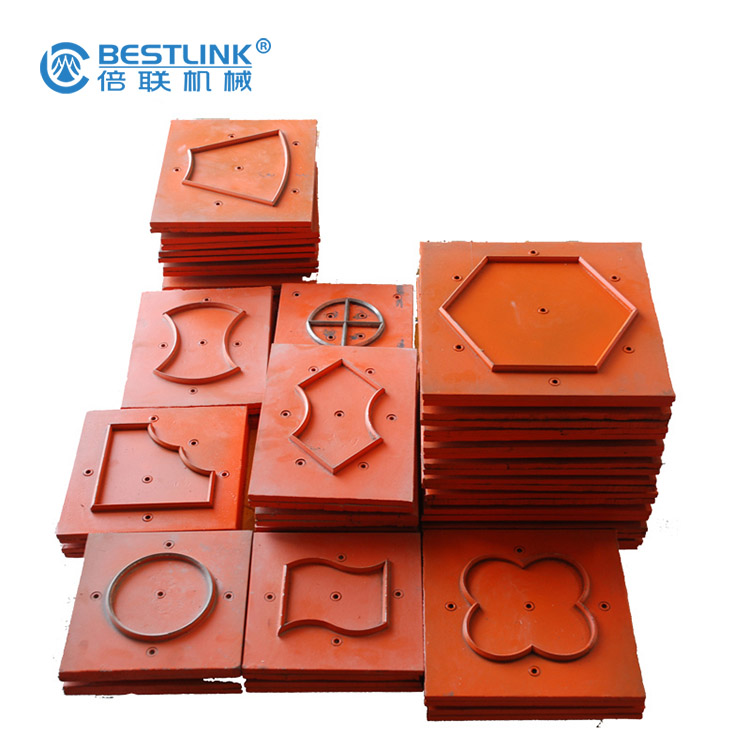

3. At least 45 different moulds.
4. According to customers' need to change the design
